Product Details

Description



Features:

·Operating Voltage  (±2.0 to ±4.5V)
·Operating Current  (3.8mA typ. at V+/V-=±2.5V)
·High Slew Rate  (260V/µs typ.)
·Gain Bandwidth Product  (1GHz typ.)
·Bandwidth  (10MHz typ. at 40dB)
·Unity Gain Bandwidth  (180MHz typ.)
·nput Offset Voltage  (7mV max.)
·Maximum Output Voltage  (±1.5V typ. at RL=1kΩ)
·Open Loop Voltage Gain  (75dB typ.)
·Bipolar Technology
·Package Outline  DMP8,TVSP8


Pinout

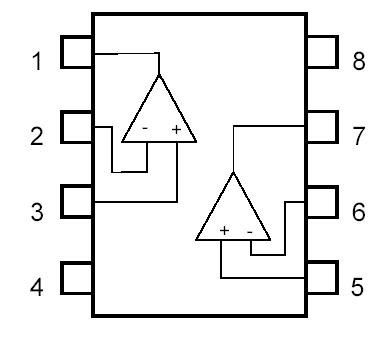

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply Voltage V+ 10 V
Differential Input Voltage VID ±2 V
Power Dissipation PD 200 mW
Operating Temperature Range Topr -20 to +75 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJM2712  is  an  ultra  high  speed  dual  operational amplifier.

NJU2712RB1  can  swings  260V/µs  high  slew  rate  and  1GHz  gain band width product(10MHz typ. at 40dB) at ±2.5V.

NJU2712RB1  is  suitable  for  pickup  circuit  of  CD-R/RW  or  DVD-R/RW, wideband video system,  high  resolution  scanner or  FAX, high speed  telecommunications, and any  other high speed signal processing system.
