Product Details

Description



Features:

· Dolby Digital / Dolby Digital EX (7.1ch)
· DTS (5.1ch)
· Dolby Pro Logic II
· Virtual Dolby Digital
· Bass Management


Pinout

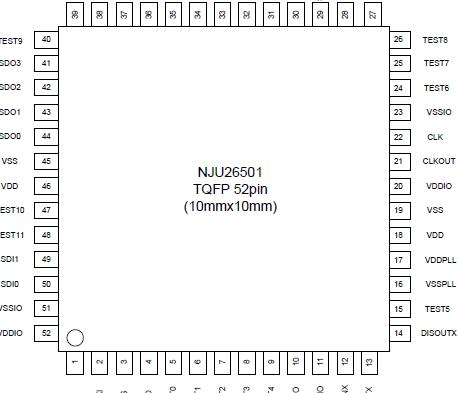

Connection Diagram


Specifications

Parameter Symbol Rating Units
Supply Voltage Logic VDD -0.3 - 2.1 V
PLL VDDPLL -0.3 - 2.1
I/O VDDIO VDD - 3.8
Pin Voltage In, I/O Vx -0.3 - 5.5 V
Out Vx(OUT) -0.3 - VDDIO +0.3
CLK Vx(Xi) -0.3 - VDDIO +0.3
CLK
OUT		 Vx(Xo) -0.3 - VDD +0.3
Power Dissipation PD 0.3 W
Storage Temperature TSTR -40~+125 °C
* Vx : Pin No. 1,2,5,6,7,8,12,13,14,15,25,26,27,28,29,30,31,40,47,48,49,50
* Vx(OUT) : Pin No. 9,24,36,37,38,39,41,42,43,44
* Vx(Xi) : Pin No. 22
* Vx(Xo) : Pin No. 21


Description

The NJU26501 is a multi-function digital audio signal decoder.

The NJU26501 processes the stereo matrix-encoded or compressed signal into spacious sound of up to 7.1(max) channels by Dolby Digital, Dolby Digital EX or DTS with Bass Management System. Also non matrix-encoded audio signal can be processed into effective spacious sound by Dolby ProLogic II.

The decoded multi-channel signal of NJU26501 can be downmixed into 2-channel virtual surround output by the Dolby Virtual technology.

The applications of the NJU26501 are suitable for multi-channel products such as DVD Player, AV AMP, Home Theater and Car Audio, or any kinds of multi-channel audio products.
