NJM3775

Features: • Dual chopper driver• 750 mA continuous output current per channel• Digital filter on chip eliminates external filtering components• Packages DIP22 / PLCC28 / EMP24(batwing)PinoutSpecifications Parameter Pin No. Symbol Min Max Unit Voltag...

product image

NJM3775 Picture
See larger image
SeekIC No. : 004434234 Detail

NJM3775: Features: • Dual chopper driver• 750 mA continuous output current per channel• Digital filter on chip eliminates external filtering components• Packages DIP22 / PLCC28 / EMP2...

NJM3775 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM3775
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual chopper driver
• 750 mA continuous output current per channel
• Digital filter on chip eliminates external filtering components
• Packages DIP22 / PLCC28 / EMP24(batwing)


Pinout

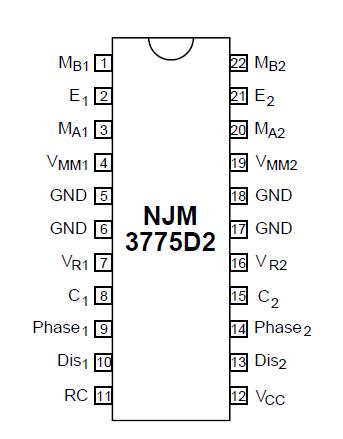

Connection Diagram


Specifications

Parameter
Pin No.
Symbol
Min
Max
Unit
Voltage





Logic supply
12
VCC
0
7
V
Motor supply
4, 19
VMM
0
45
V
Logic inputs
9, 10, 13, 14
VI
-0.3
6
V
Analog inputs
7, 8, 15, 16
VA
-0.3
VCC
V
Current





Motor output current
1, 3, 20, 22
IM
-850
+850
mA
Logic inputs
9, 10, 13, 14
II
-10
-
mA
Analog inputs
7, 8, 15, 16
IA
-10
-
mA
Temperature





Operating junction temperature

TJ
-40
+150
°C
Storage temperature

TSTG
-55
+150
°C
Power Dissipation (Package Data)





Power Dissipation at TGND = +25°C, DIP and PLCC package

PD
-
5
W
Power dissipation at TGND = +25°C, DIP package

PD
-
2.2
W
Power dissipation at TGND = +125°C, PLCC package

PD
-
2.6
W



Description

The NJM3775 is a switch-mode (chopper), constantcurrent driver with two channels: one for each winding of a two-phase stepper motor. NJM3775 is equipped with a Disable input to simplify half-stepping operation. The NJM3775 contains a clock oscillator, which is common for both driver channels, a set of comparators and flip-flops implementing the switching control, and two output H-bridges, including recirculation diodes. Voltage supply requirements are + 5 V for logic and + 10 to + 45 V for the motor. Maximum output current is 750mA per channel.
