NJM3717FM2

Motor / Motion / Ignition Controllers & Drivers Stepper

product image

NJM3717FM2 Picture
See larger image
SeekIC No. : 00532882 Detail

NJM3717FM2: Motor / Motion / Ignition Controllers & Drivers Stepper

NJM3717FM2 Data Sheet

floor Price/Ceiling Price

US $ 1.75~2.05 / Piece | Get Latest Price
Part Number:
NJM3717FM2
Mfg:
NJR
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $2.05
  • $1.94
  • $1.83
  • $1.75
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Stepper Motor Controllers / Drivers Type : Stepper Motor Controller/Driver
Operating Supply Voltage : 7 V Supply Current : 25 mA
Mounting Style : SMD/SMT Package / Case : PLCC-28
Packaging : Tube

Description

Mounting Style : SMD/SMT
Packaging : Tube
Product : Stepper Motor Controllers / Drivers
Type : Stepper Motor Controller/Driver
Operating Supply Voltage : 7 V
Supply Current : 25 mA
Package / Case : PLCC-28


Features:

• Half-step and full-step modes
• Switched mode bipolar constant current drive
• Wide range of current control 5 - 1200 mA
• Wide voltage range 10 - 50 V
• Thermal overload protection
• Packages DIP16 / PLCC28 / EMP20


Pinout

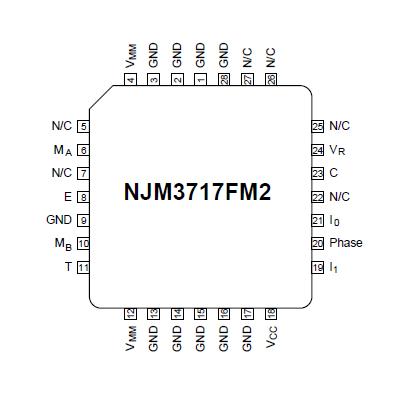

Connection Diagram


Specifications

Parameter
Pin [DIP]
Symbol
Min
Max
Unit
Voltage
Logic supply
6
VCC
0
7
V
Motor supply
3, 14
VMM
0
50
V
Logic inputs
7, 8, 9
VI
-0.3
6
V
Comparator input
10
VC
-0.3
VCC
V
Reference input
11
VR
-0.3
15
V
Current
Motor output current
1, 15
IM
-1200
+1200
mA
Logic inputs
7, 8, 9
II
-10
-
mA
Analog inputs
10, 11
IA
-10
-
mA
Temperature
Operating junction temperature
Tj
-40
+150
°C
Storage temperature
Tstg
-55
+150
°C



Description

NJM3717 is a stepper motor diver, which consists of a LS-TTL compatible logic input stage, a current sensor, a monostable multivibrator and a high power H-bridge output stage with built-in protection diodes.

The output current of NJM3717FM2 is up to 1200mA. Two NJM3717 and a small number of external components form a complete control and drive unit for stepper motor systems.
