NJM3545

Features: • 2000mA continuous-output current• Short circuit to VCC protection• Error signal to host system• Open circuit detection• Short circuit to ground detection• Thermal protection• Built-in protection diodes• Package TO-220 (5-pin)Application&#...

product image

NJM3545 Picture
See larger image
SeekIC No. : 004434227 Detail

NJM3545: Features: • 2000mA continuous-output current• Short circuit to VCC protection• Error signal to host system• Open circuit detection• Short circuit to ground detection...

NJM3545 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM3545
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2000mA continuous-output current
• Short circuit to VCC protection
• Error signal to host system
• Open circuit detection
• Short circuit to ground detection
• Thermal protection
• Built-in protection diodes
• Package TO-220 (5-pin)


Application

• Programmable logic control systems
• Relay control
• Hydraulic valves
• Intelligent interfaces between microprocessors and loads
• Robot techniques
• Print head drivers
• High-current stepper motor drivers


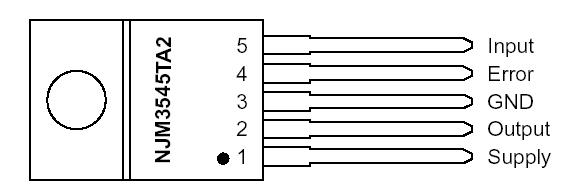

Pinout

Connection Diagram


Specifications

Parameter Pin no. Symbol Min Max Unit
Voltage
Supply voltage 1 VCC 0 5 V
Logic input voltage 5 VIN

-0.3

 VCC V
Current
Logic input current 5 IIN -10 - mA
Continuous DC Operation output current TO-220 2 IOUT - 2000 mA
Error output current 4 IERR - 10 mA
Temperature
Operating junction temperature (internally limited)   TJ - +140 °C
Storage temperature   TS -40 +150 °C
Power Dissipation (Package Data)
Power dissipation at TCase = 85°C, TO-220 package   PD - 11 W
ESD
ESD tolerance (Note 2)     2000 - V



Description

NJM3545 is a bipolar universal high-current highly protected low side driver with transparent input and 2000mA continuous -current sink capability.

A high-level input activates the output. The NJM3545 is equipped with extensive electrical protection; such as over current protection and thermal protection, which makes the device virtually indestructible.

Furthermore NJM3545 can detect open circuit and short circuit to ground. A special feature is the Error indicating output function pin which signals to the host system if the protection or the load check functions is activated. The NJM3545 and NJM3548 are complementary drivers and have similar data.
