NJM3517

Features: • Internal complete driver and phase logic• Continuous-output current 2 x 350mA• Half- and full-step mode generation• LS-TTL-compatible inputs• Bi-level drive mode for high step rates• Voltage-doubling drive possibilities• Half-step position-indi...

product image

NJM3517 Picture
See larger image
SeekIC No. : 004434224 Detail

NJM3517: Features: • Internal complete driver and phase logic• Continuous-output current 2 x 350mA• Half- and full-step mode generation• LS-TTL-compatible inputs• Bi-level drive...

NJM3517 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM3517
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal complete driver and phase logic
• Continuous-output current 2 x 350mA
• Half- and full-step mode generation
• LS-TTL-compatible inputs
• Bi-level drive mode for high step rates
• Voltage-doubling drive possibilities
• Half-step position-indication output
• Minimal RFI
• Packages DIP16 / EMP16

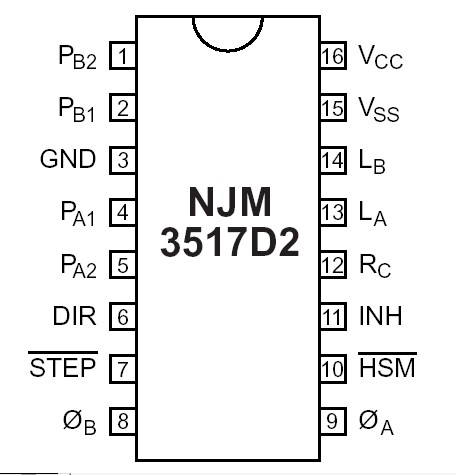

Pinout

Connection Diagram


Specifications

Parameter
Pin No.
Symbol
Min
Max
Unit
Voltage
Logic supply
16
VCC
0
7
V
Second suppl
15
VSS
0
45
V
Logic input
6, 7, 10, 11
VI
-0.3
6
V
Current
Phase output
1, 2, 4, 5
IP
0
500
mA
Second-level output
13, 14
IL
-500
0
mA
Logic input
6, 7, 10, 11
II
-10
mA
The zero output
8, 9
IO
-
6
mA
Temperature
Operating junction temperature
Tj
-40
+150
°C
Storage temperature

TStg

-55
+150
°C
Power Dissipation (Package Data)
Power dissipation at Ta = 25°C, DIP package. Note 2.
PD
-
1.6
W
Power dissipation, EMP package. Note 3.
PD
-
1.3



Description

NJM3517 is a stepper motor controller/driver, which requires minimum of external components and drive currents up to 500mA. The NJM3517 is suited for applications requiring least-possible RFI. Operating in a bi-level drive mode can increase motor performance; high voltage pulse is applied to the motor winding at the beginning of a step, in order to give a rapid rise of current.
