NJM2898

Features: 􀁺 High Ripple Rejection75dB typ. (f=1kHz,Vo=3V Version)􀁺 Output Noise VoltageVno=19Vrms typ. (Cp=0.01F, Co=1.0F(Ceramic)) Vno=12Vrms typ. (Cp=0.1F, Co=10F(Tantalum))􀁺 Output capacitor with1.0uF ceramic capacitor􀁺 Output Current Io(max.)=100mA * 2ch ...

product image

NJM2898 Picture
See larger image
SeekIC No. : 004434193 Detail

NJM2898: Features: 􀁺 High Ripple Rejection75dB typ. (f=1kHz,Vo=3V Version)􀁺 Output Noise VoltageVno=19Vrms typ. (Cp=0.01F, Co=1.0F(Ceramic)) Vno=12Vrms typ. (Cp=0.1F, Co=10F(Tantalum))h...

NJM2898 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2898
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺 High Ripple Rejection           75dB typ. (f=1kHz,Vo=3V Version)
􀁺 Output Noise Voltage           Vno=19Vrms typ. (Cp=0.01F, Co=1.0F(Ceramic))
                                                 Vno=12Vrms typ. (Cp=0.1F, Co=10F(Tantalum))
􀁺 Output capacitor with 1.0uF ceramic capacitor
􀁺 Output Current                     Io(max.)=100mA * 2ch
􀁺 High Precision Output           Vo±1.0%
􀁺 Low Dropout Voltage            0.10V typ. (Io=60mA)
􀁺 ON/OFF Control                     (Active High)
􀁺 Internal Short Circuit Current Limit
􀁺 Internal Thermal Overload Protection
􀁺 Bipolar Technology
􀁺 Package Outline                   FFP12-B1 (2.0*2.0*0.85mm)

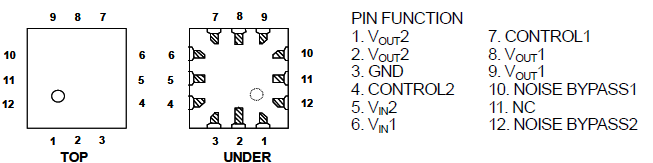

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Input Voltage VIN +14 V
Control Voltage VCONT +14(*1) V
Power Dissipation PD 350(*2) mW
Operating Temperature Topr -40 ∼ +85 °C
Storage Temperature Tstg -40 ∼ +125 °C
(*1): When input voltage is less than +14V, the absolute maximum control voltage is equal to the input voltage.
(*2): Mounted on glass epoxy board based on EIA/JEDEC. (114.3x76.2x1.6mm: 2Layers)



Description

The NJM2898 is a 2ch ultra low noise low dropout voltage regulator designed for VCO Applications.

Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.
