Product Details

Description



Features:

High Ripple Rejection 70dB typ. at f=1kHz
Low Noise 45µVrms typ.
Output capacitor with 1.0µF ceramic capacitor at Vo2.7V
Output Current Io(max.)=100mA x 2ch
High Precision Output ±1.0%
Low Dropout Voltage 0.1V typ. at Io=60mA
ON/OFF Control
Internal Thermal Overload Protection
Internal Short Circuit Current Limit
Bipolar Technology
Package Outline SOT-23-6

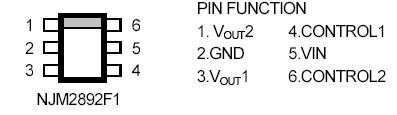

Pinout

Connection Diagram


Specifications

Symbol
Description
RATINGS
Unit
VIN
Input Voltage
+14
V
VCONT
Control Voltage
+14(note 1)
V
PD
Power Dissipation
200
mW
Topr
Operating Temperature
−40 ∼ +85
°C
TSTG
Storage Temperature
−40 ∼ +125
° C

(note1)When input voltage is less than +14V, the absolute maximum control voltage is equal to the input voltage.


Description

The NJM2892 is a 2ch low dropout voltage regulator with ON/OFF Control in SOT-23 package.
NJM2892 is suitable for camcorder, IC decoder, camera and other portable items.
