NJM2891

Features: 􀁺 High Ripple Rejection 70dB typ. (f=1kHz , Vo=3V Version)􀁺 Output Noise Voltage Vno=30Vrms typ.(Cp=0.01F)􀁺 Output capacitor with1.0F ceramic capacitor (Vo2.7V)􀁺 Output Current Io(max.)=150mA * 2ch􀁺 High Precision Output Vo±1.0%􀁺 Low ...

product image

NJM2891 Picture
See larger image
SeekIC No. : 004434190 Detail

NJM2891: Features: 􀁺 High Ripple Rejection 70dB typ. (f=1kHz , Vo=3V Version)􀁺 Output Noise Voltage Vno=30Vrms typ.(Cp=0.01F)􀁺 Output capacitor with1.0F ceramic capacitor (Vo2.7V)&...

NJM2891 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2891
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

􀁺 High Ripple Rejection       70dB typ. (f=1kHz , Vo=3V Version)
􀁺 Output Noise Voltage       Vno=30Vrms typ.(Cp=0.01F)
􀁺 Output capacitor with 1.0F ceramic capacitor (Vo2.7V)
􀁺 Output Current                Io(max.)=150mA * 2ch
􀁺 High Precision Output      Vo±1.0%
􀁺 Low Dropout Voltage       0.10V typ. (Io=60mA)
􀁺 ON/OFF Control (Active High)
􀁺 Internal Short Circuit Current Limit
􀁺 Internal Thermal Overload Protection
􀁺 Bipolar Technology
􀁺 Package Outline              FFP12-B1 (2.0*2.0*0.85mm)


Pinout

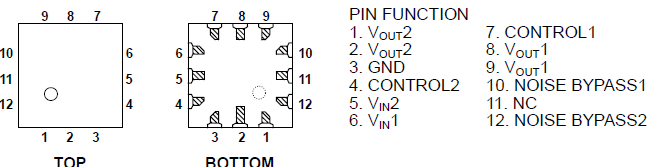

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Input Voltage VIN +14 V
Control Voltage VCONT +14(*1) V
Power Dissipation PD 300(*2) mW
Operating Temperature Topr −40 ∼ +85 °C
Storage Temperature Tstg −40 ∼ +125 °C



Description

The NJM2891 is low dropout voltage regulator designed for cellular phone application.

Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current
