NJM2890

Features: High Ripple Rejection 70dB typ. (f=1kHz)Output Noise Voltage Vno=30µVrms (Cp=0.01µF)Output capacitor with 1.0uF ceramic capacitor (Vo2.7V)Output Current Io(max.)=150mA * 2chHigh Precision Output Vo±1.0%Low Dropout Voltage 0.10V typ. (Io=60mA)Operating Voltage Range +2.5V&#...

product image

NJM2890 Picture
See larger image
SeekIC No. : 004434189 Detail

NJM2890: Features: High Ripple Rejection 70dB typ. (f=1kHz)Output Noise Voltage Vno=30µVrms (Cp=0.01µF)Output capacitor with 1.0uF ceramic capacitor (Vo2.7V)Output Current Io(max.)=150mA * 2ch...

NJM2890 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2890
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Ripple Rejection 70dB typ. (f=1kHz)
Output Noise Voltage Vno=30µVrms (Cp=0.01µF)
Output capacitor with 1.0uF ceramic capacitor (Vo2.7V)
Output Current Io(max.)=150mA * 2ch
High Precision Output Vo±1.0%
Low Dropout Voltage 0.10V typ. (Io=60mA)
Operating Voltage Range +2.5V∼+14V (Vo2.0V version)
ON/OFF Control (Active High)
Internal Short Circuit Current Limit
Internal Thermal Overload Protection
Bipolar Technology
Package Outline VSP10


Pinout

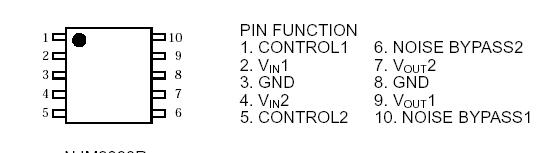

Connection Diagram


Specifications

Symbol
Description
RATINGS
Unit
VIN
Input Voltage
+14
V
PD
Power Dissipation
+14(note 1)
V
Topr
Operating Temperature
−40 ∼ +85
°C
TSTG
Storage Temperature
−40 ∼ +125
° C

(note 1) When input voltage is less than +14V, the absolute maximum control voltage is equal to the input voltage.


Description

The NJM2890 is a dual low dropout voltage regulator. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.
