Features:

High Ripple Rejection             70dB typ. (f=1kHz Vo=3V version)
 Output Noise Voltage           Vno=30µVrms typ. (Cp=0.01µF)
 Output capacitor with 1.0uF ceramic capacitor(Vo2.7V: Version)
 Output Current                     Io(max.)=150mA
 High Precision Output           Vo ±1.0%
 Low Dropout Voltage            0.10V typ. (Io=60mA)
 Input Voltage Range             +2.5 ∼+14V(Vo2.0V version)
 ON/OFF Control (Active High) (Active High)
 Internal Short Circuit Current Limit
 Internal Thermal Overload Protection
 Bipolar Technology
 Package Outline                    MTP5 (MTP5:2.8*2.9*1.1mm)


Pinout

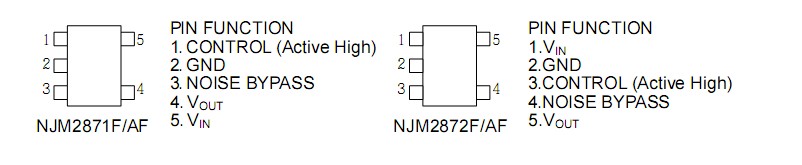

  Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Input Voltage
VIN
+14
V
Control Voltage
VCONT
+14(note 1)
V
Power Dissipation
PD
200
mW
Operating Temperature
Topr
−40 ∼+85
°C
Storage Temperature
Tstg
−40 ∼+125
°C

(note 1) When input voltage is less than +14V, the absolute maximum control voltage is equal to the input voltage.




Description

The NJM2871/A, NJM2872/A are low dropout voltage regulators designed for cellular phone application. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.
