NJM2867

Features: `High Ripple Rejection 75dB typ. (f=1kHz Vo=3V Version)`Output Noise Voltage Vno=40µVrms typ.`Output capacitor with 0.1µF ceramic capacitor (Vo2.8V)` Output Current Io(max.)=100mA` High Precision Output Vo±1.0%` Low Dropout Voltage 0.10V typ. (Io=60mA)` ON/OFF Control (Active...

product image

NJM2867 Picture
See larger image
SeekIC No. : 004434170 Detail

NJM2867: Features: `High Ripple Rejection 75dB typ. (f=1kHz Vo=3V Version)`Output Noise Voltage Vno=40µVrms typ.`Output capacitor with 0.1µF ceramic capacitor (Vo2.8V)` Output Current Io(max.)=10...

NJM2867 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2867
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Ripple Rejection 75dB typ. (f=1kHz Vo=3V Version)
`Output Noise Voltage Vno=40µVrms typ.
`Output capacitor with 0.1µF ceramic capacitor (Vo2.8V)
` Output Current Io(max.)=100mA
` High Precision Output Vo±1.0%
`  Low Dropout Voltage 0.10V typ. (Io=60mA)
` ON/OFF Control (Active High)
` Internal Short Circuit Current Limit
`  Internal Thermal Overload Protection
` Bipolar Technology
` Package Outline SC88A (NJM2867F3), SOT-23-5 (NJM2867F/NJM2868F)


Pinout

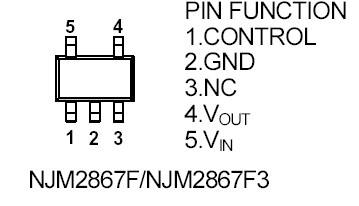

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Input Voltage
Control Voltage
VIN
VCONT
+14
+14(*1)
V
V
Power Dissipation
PD
SC88A
SOT-23-5
250(*2)
200(*3)
350(*2)
mW
Operating Temperature
Storage Temperature
Topr
Tstg
-40∼+85
-40∼+125
°C
°C
(*1): When input voltage is less than +14V, the absolute maximum control voltage is equal to the input voltage.
(*2): Mounted on glass epoxy board based on EIA/JEDEC. (114.3x76.2x1.6mm: 2Layers)
(*3): Device itself.


Description

The NJM2867/68 is a 100mA output low dropout voltage regulator with ON/OFF control.

Advanced Bipolar technology of NJM2867 achieves low noise, high ripple rejection and low quiescent current.

Small packaging, 0.1µF small decoupling capacitor, built-in noise bypass capacitor make the NJM2865/66 suitable for space conscious applications.
