Features:

High Ripple Rejection                          70dB typ. (f=1kHz,Vo=3V Version)
Output Noise Voltage                         Vno=30µVrms typ. (Cp=0.01µF)
Output capacitor with 1.0uF ceramic capacitor (Vo2.7V)
Output Current                                   Io(max.)=100mA
High Precision Output                         Vo±1.0%
Low Dropout Voltage                          0.10V typ. (Io=60mA)
ON/OFF Control                                  (Active High)
Internal Short Circuit Current Limit
Internal Thermal Overload Protection
Bipolar Technology
Package Outline                                 SC88A


Pinout

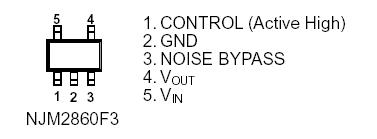

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Input Voltage VIN +14 V
Control Voltage VCONT +14(*1) V
Power Dissipation PD 250(*2) mW
Operating Temperature Topr −40 ∼ +85 °C
Storage Temperature Tstg −40 ∼ +125 °C



Description

The NJM2860 is a low dropout voltage regulator.

Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.

NJM2860 features small SC-88A package.
