NJM2845

Features: High Ripple Rejection 75dB typ. (f=1kHz,3V Version) Output Noise Voltage Vno=45Vrms typ. (Vo=3V Version) Output capacitor with 2.2F ceramic capacitor (Vo2.6V) Output Current Io(max.)=800mA High Precision Output Vo ±1.0% Low Dropout Voltage 0.18V typ. (Io=500mA) ON/OFF Control(NJM2846) In...

product image

NJM2845 Picture
See larger image
SeekIC No. : 004434149 Detail

NJM2845: Features: High Ripple Rejection 75dB typ. (f=1kHz,3V Version) Output Noise Voltage Vno=45Vrms typ. (Vo=3V Version) Output capacitor with 2.2F ceramic capacitor (Vo2.6V) Output Current Io(max.)=800mA...

NJM2845 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2845
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Ripple Rejection                                   75dB typ. (f=1kHz,3V Version)
Output Noise Voltage                          Vno=45Vrms typ. (Vo=3V Version)
Output capacitor with 2.2F ceramic capacitor (Vo2.6V)
Output Current                                                                Io(max.)=800mA
High Precision Output                                                                Vo ±1.0%
Low Dropout Voltage                                             0.18V typ. (Io=500mA)
ON/OFF Control                                                                         (NJM2846)
Internal Short Circuit Current Limit
Internal Thermal Overload Protection
Bipolar Technology
Package Outline          TO-252-3 (NJM2845DL1), TO-252-5 (NJM2846DL3)


Pinout

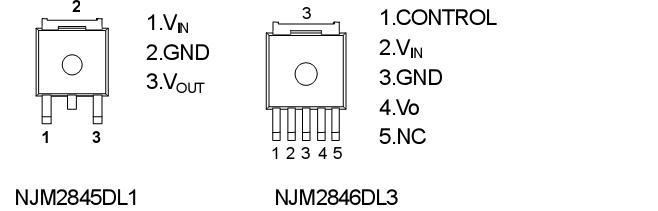

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Input Voltage VIN +14 V
Control Voltage VCONT +14(*1) V
Power Dissipation PD 10(Tc25°C)
1.0(Ta25°C)		 W
Operating
Temperature 		Topr -40 ~ +85 °C
Storage
Temperature 		Tstg -40 ~ +150 °C



Description

The NJM2845 is low dropout voltage regulator. Advanced  Bipolar technology achieves low noise, high ripple rejection   and low quiescent current.

NJM2845 is 3 terminal type and NJM2846 is ON/OFF control  built in type. These product can be selected according to the  applications.
