NJM2747

Features: Operating Voltage :2.5V to 14VOutput Full Swing : VOH 4.9V Typ. (at V+=5V, RL=5kΩ): VOL 0.1V Typ. (at V+=5V, RL=5kΩ)Offset Voltage :1mV TypSlew Rate : 3.5V/µs Typ.Low Distortion : 0.001% typ. (at V+=5V, f=1kHz)Low Input Voltage Noise :10nV/Hz typ.Bipolar TechnologyPacka...

product image

NJM2747 Picture
See larger image
SeekIC No. : 004434120 Detail

NJM2747: Features: Operating Voltage :2.5V to 14VOutput Full Swing : VOH 4.9V Typ. (at V+=5V, RL=5kΩ): VOL 0.1V Typ. (at V+=5V, RL=5kΩ)Offset Voltage :1mV TypSlew Rate : 3.5V/µs Typ.Low Dis...

NJM2747 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2747
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Operating Voltage :2.5V to 14V
Output Full Swing : VOH 4.9V Typ. (at V+=5V, RL=5kΩ)
: VOL 0.1V Typ. (at V+=5V, RL=5kΩ)
Offset Voltage :1mV Typ
Slew Rate : 3.5V/µs Typ.
Low Distortion : 0.001% typ. (at V+=5V, f=1kHz)
Low Input Voltage Noise :10nV/Hz typ.
Bipolar Technology
Package Outline : DIP14, DMP14, SSOP14


Pinout

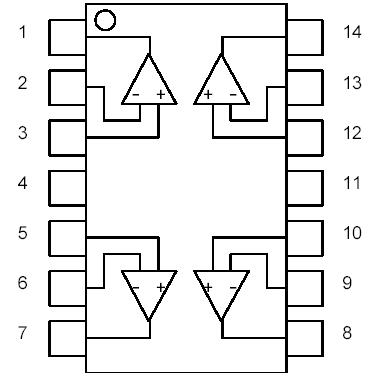

Connection Diagram


Specifications

PARAMETER SYMBOL MAXIMUM RATINGS UNITS
Supply Voltage V+ 15 V
Differential Input Voltage Range VID ±15 (Note1) V
Common Mode Input Voltage Range VICM 0 to 15 (Note1) V
Power Dissipation PD DIP14 (870)
DMP14 (450) (Note2)
DMP14 (560) (Note3)
SSOP14 (420) (Note2)
SSOP14 (520) (Note3)		 mW
Operating Temp. Topr -40~+85
Storage Temp. Tstg -40~+125
(Note1) For supply voltage less than 15V, the absolute maximum input voltage is equal to the supply voltage.
(Note2) On the PCB " EIA/JEDEC (76.2*114.3*1.6mm, two layers, FR-4) "
(Note3) On the PCB " EIA/JEDEC (76.2*114.3*1.6mm, four layers, FR-4) "


Description

The NJM2747 is a quad low supply voltage operational amplifier with Full swing output.

NJM2747 is suitable for audio section of portable sets, PCs and any General-purpose use.
