Product Details

Description

Features:

Operating Voltage                                                        ( ±2V to ±7V )
Low Input Noise Voltage                                             ( 5nV/ Hz@1kHz typ. )
Wide Gain Bandwidth Product                                      ( 15MHz typ. )
Low Distortion                                                             ( 0.005% typ. @A_V=20dB,V_O=1Vrms,R_L=2k,f=1kHz)
Slew Rate                                                                     ( 5V/µs typ. )
Package Outline                                                           DIP14,EMP14,SSOP14,DMP14
Bipolar Technology

Pinout

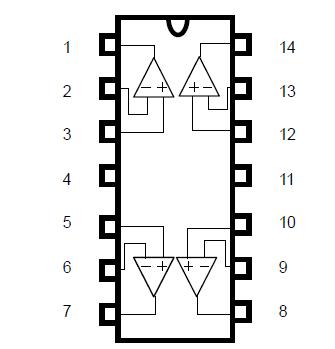

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V^+/V^-	± 7.5	V
Commom mode Input Voltage	V^_IC	± 7.5 ( note 1)	V
Differential Input Voltage	V_ID	± 15 ( note 1)	V
Power Dissipation	P_D	870(DIP14) 930(EMP14) ( note 2) 700(DMP14) ( note 2) 570(SSOP14) ( note 2)	mW
Output Current	I_O	± 50	mA
Operating Temperature Range	T_opr	-40~+85
Storage Temperature Range	T_stg	-40~+125

Description

NJM2745 is the quad operational amplifier for the audio use. Designed low noise, high gain-bandwidth, and low distortion, that is suitable for audio applications and active filters.
