Product Details

Description



Features:

· Operating Voltage (±1.1 to ±3.5V)
· Low Saturation (±2.2V typ. at RL=2.5kΩ) Output Voltage
· High Slew Rate (4V/µs typ.)
· Bipolar Technology
· Package Outline DMP8,SSOP8




Pinout

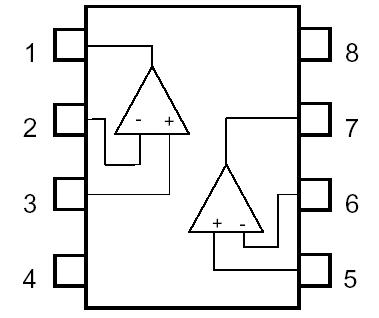

Connection Diagram


Specifications

PARAMETER SYMBOL MAXIMUM RATINGS UNITS
Supply Voltage V+/V - ±4 V
Differential Input Voltage Range VID ±7 V
Common Mode Input Voltage Range VIC ±3.5 V
Power Dissipation PD 300 (DMP8)
250 (SSOP8)		 mW
Operating Temp. Topr -40~+85
Storage Temp. Tstg -40~+125



Description

The NJM2740 is a dual low supply voltage operational amplifier with low saturation output voltage.

NJM2740 can operate with single supply when proper input bias has given.

NJM2740 is suitable for audio section of portable sets and PCs.
