NJM2717 Selling Leads, Price trend, NJM2717 DataSheet download, circuit diagram from SeekIC.com

Features: Single Supply Operating Voltage 2.7V to 12V High Slew Rate 40V/µs Typ. at V+=5V Operating Current 8mA typ. at V+=5V Output Voltage Range VOH 4.5V Typ. at V+=5V,RL=4kΩ VOL 0.05V Typ. at V+=5V,RL=4kΩ Bipolar Technology Package Outline DIP8, DMP8, SSOP8, TVSP8PinoutSpecifi...

See larger image

SeekIC No. : 004434104 Detail

NJM2717: Features: Single Supply Operating Voltage 2.7V to 12V High Slew Rate 40V/µs Typ. at V+=5V Operating Current 8mA typ. at V+=5V Output Voltage Range VOH 4.5V Typ. at V+=5V,RL=4kΩ VOL 0.05V...

NJM2717 Data Sheet

Get Latest Price

Part Number:: NJM2717
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NJM2035D evaluate
US $.44 - .64 / Piece

Audio DSPs 1V <3mA
NJM2035M evaluate
US $.47 - .56 / Piece

Audio DSPs 1V <3mA
NJM2035M-T1 evaluate
Audio Amplifiers Desc Unavailable

Product Details

Description

Features:

Single Supply
Operating Voltage 2.7V to 12V
High Slew Rate 40V/µs T_yp. at V+=5V
Operating Current 8mA typ. at V+=5V
Output Voltage Range V_OH 4.5V T_yp. at V+=5V,R_L=4kΩ V_OL 0.05V T_yp. at V+=5V,R_L=4kΩ
Bipolar Technology
Package Outline DIP8, DMP8, SSOP8, TVSP8

Pinout

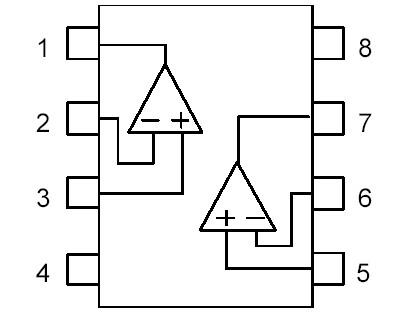

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V⁺	15.0	V
Differential Input Voltage	V_ID	± 3	V
Input Common Mode Voltage Range	V_ICM	-0.3 to +15.0(Note 1)	V
Power Dissipation	P_D	(DIP8) 500 (DMP8) 300 (SSOP8) 250 (TVSP8) 320	mW
Output Sink Current	I_SINK	10	mA
Operating Temperature Range	T_opr	-40 to +85	°C
Storage Temperature Range	T_stg	-40 to +125	°C

(Note 1) For supply voltage less than 15V, the absolute maximum input voltage is equal to the supply voltage.

Description

The NJM2717 is single supply dual high slew rate operational amplifier. It is applicable to A/D converters, FAX, scanner which require the single supply operation and high slew rate.
