NJM2710

Features: · Operating Voltage (±2.0 to ±4.5V)· Operating Current (11.4mA typ. at V+/V-=±2.5V)· High Slew Rate (260V/µs typ.)· Gain Bandwidth Product (1GHz typ.) Bandwidth (10MHz typ. at 40dB)· Unity Gain Bandwidth (180MHz typ.)· Input Offset Voltage (7mV max.)· Maximum Output Voltage ...

product image

NJM2710 Picture
See larger image
SeekIC No. : 004434101 Detail

NJM2710: Features: · Operating Voltage (±2.0 to ±4.5V)· Operating Current (11.4mA typ. at V+/V-=±2.5V)· High Slew Rate (260V/µs typ.)· Gain Bandwidth Product (1GHz typ.) Bandwidth (10MHz typ. at 40...

NJM2710 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2710
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage (±2.0 to ±4.5V)
· Operating Current (11.4mA typ. at V+/V-=±2.5V)
· High Slew Rate (260V/µs typ.)
· Gain Bandwidth Product (1GHz typ.) Bandwidth (10MHz typ. at 40dB)
· Unity Gain Bandwidth (180MHz typ.)
· Input Offset Voltage (7mV max.)
· Maximum Output Voltage (±1.5V typ. at RL=1kΩ)
· Open Loop Voltage Gain (75dB typ.)
· Bipolar Technology
· Package Outline DMP20,SSOP20


Pinout

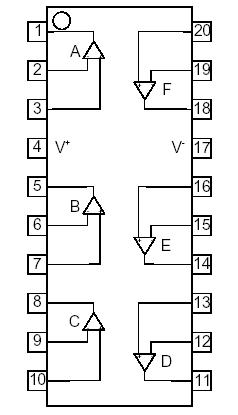

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 15 V
Differential Input Voltage VID ±2 V
Power Dissipation PD (DMP20,SSOP20) 375 mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -50 to +150 °C



Description

The NJM2710 is an ultra high speed hex operational amplifier.

NJM2710 can swings 260V/µs high slew rate and 1GHz gain band width product(10MHz typ. at 40dB) at 5V.

NJM2710 is suitable for telecommunication related system, digital broadcasting system, high quality scanner and any other high speed signal processing system.
