Product Details

Description

Features:

` Operating Voltage                       1.8 to 6V
` Low Operating Current                 0.45mA typ. (at Surround mode, VR: max.)
` Low Output Noise                         10V typ. (at Surround mode, VR: max.)
` Variable Surround Effect by external resistor
` Internal Mode Control Switch
` Bipolar Technology
` Package Outline                             TVSP10

Pinout

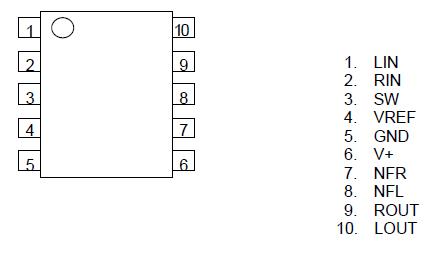

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V⁺	7	V
Power Dissipation	P_D	320	mW
Operating Temperature Range	T_opr	-20 to +75	°C
Storage Temperature Range	T_stg	-40 to +125	°C

Description

The NJM2703 is a high quality 3D surround audio processor designed for headphone applications.

NJM2703 includes mode control switch (Surround mode / Bypass mode).

The NJM2703 features low operating voltage, low operating current, low output noise and very small package, and is suitable for any portable audio applications.
