NJM2670

Features: • Wide Voltage Range (4V to 60V)• Wide Range of Current Control (5 to 1500mA )• Thermal overload Protection• Dead Band Protector• Package Outline (DIP-22, EMP-24)PinoutSpecifications PARAMETER SYMBOL RATINGS UNIT Maximum Supply Voltage VMM ...

product image

NJM2670 Picture
See larger image
SeekIC No. : 004434091 Detail

NJM2670: Features: • Wide Voltage Range (4V to 60V)• Wide Range of Current Control (5 to 1500mA )• Thermal overload Protection• Dead Band Protector• Package Outline (DIP-22, EMP...

NJM2670 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2670
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Voltage Range (4V to 60V)
• Wide Range of Current Control (5 to 1500mA )
• Thermal overload Protection
• Dead Band Protector
• Package Outline (DIP-22, EMP-24)


Pinout

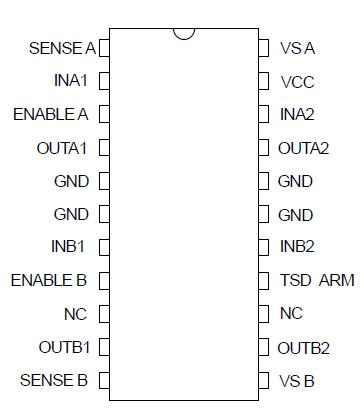

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Maximum Supply Voltage VMM 60 V
Logic Supply Voltage VCC 7 V
Input Voltage Range VIN -0.3 to 7 V
Output Current IOUT 1.5 A
Power Dissipation@T(GND)=25°C PD25 5 W
Power Dissipation@T(GND)=125°C PD125 2 W
Operating Junction Temperature Topr -40 ∼ 85 °C
Storage Temperature Tstg -55 ∼ 150 °C



Description

The NJM2670 is a general-purpose 60V dual H-bridge drive IC. It consists of a pair of H-bridges, a thermal shut down circuit and its alarm output. The alarm output can detect application problems and the system reliability will be significantly improved if monitored by Micro Processor.

Therefore, NJM2670 is suitable for two-phase stepper motor application driven by microprocessor.
