Features:

• Operating Voltage                                       VDD=4 to 14V
• Absolute Maximum Voltage                          15V
• Internal Lock Detect / Auto Protection Release Circuit
• Lock Alarm Output Terminal
• Package Outline                                          DMP8 / EMP8 / TVSP8


Pinout

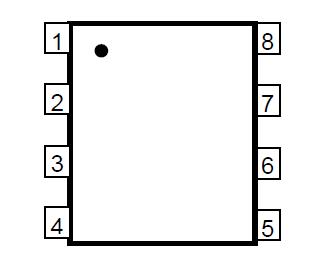

Connection Diagram Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
NOTE
Supply Voltage
Vcc
15
V
-
Hall Input Voltage Range
VIH
-0.3 ∼ VCC
V
-
Output Current (Peak)
IOUT
70
mA
-
Lock Alarm Output Voltage
VOLA
15
V
-
Hall Input Differential Voltage
VIHD
2
V
-
Lock Alarm Output Current
IOLA
20
mA
-
Operating Temperature Range
Topr
-40 ∼ 85
°C
-
Operating Junction Temperature Range
Toj
-40 ∼ 150
°C
-
Storage Temperature Range
Tstg
-55 ∼ 150
°C
-
Power Dissipation
PD
300(DMP8) /
375(EMP8) /
400(TVSP8)
mW
Device
itself



Description

The NJM2641 is a 2-phase DC brushless motor pre-driver IC.

NJM2641 incorporates Lock Detect and Auto Protection Circuit. The turn ON / turn OFF ratio at Auto Protection Release was set in 1:10 easy-to-use. Moreover, the pin is compatible with 48V pre-driver NJM2640.
