NJM2594

Features: · Operating Voltage 4.5 to 9V· Excellent Carrier Suppression· Simplification of External Circuit· Bipolar Technology· Package Outline DMP8, SSOP8PinoutSpecifications PARAMETER SYMBOL RATINGS UNIT Supply Voltage V+ 14.0 V Power Dissipation PD 250(SSOP-8), 300(DMP-8) m...

product image

NJM2594 Picture
See larger image
SeekIC No. : 004434081 Detail

NJM2594: Features: · Operating Voltage 4.5 to 9V· Excellent Carrier Suppression· Simplification of External Circuit· Bipolar Technology· Package Outline DMP8, SSOP8PinoutSpecifications PARAMETER SYMBOL...

NJM2594 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2594
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage 4.5 to 9V
· Excellent Carrier Suppression
· Simplification of External Circuit
· Bipolar Technology
· Package Outline DMP8, SSOP8


Pinout

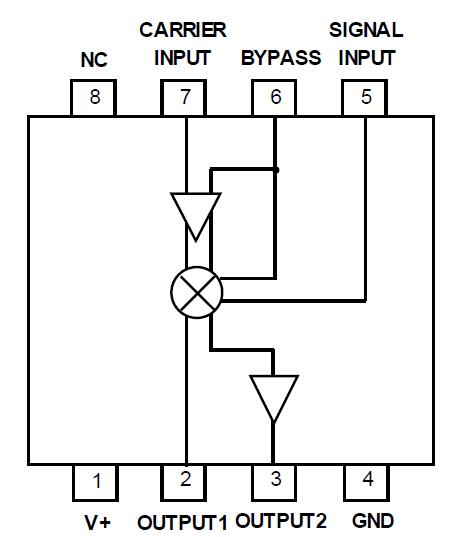

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 14.0 V
Power Dissipation PD 250(SSOP-8), 300(DMP-8) mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C
Output 2 Drive Current Id 10 mA



Description

The NJM2594 is a double balanced modulation/demodulation circuit, applied to suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection circuit.

Single input voltage of NJM2594 and simplification of external circuit offers wider applications.
