NJM2592

Features: · Low Operating Voltage 1.8V to 5.5V· Low Operating Current 3.5mA at V+ =2.0V· Operating Frequency up to 470MHz (reference value)· IF Input Frequency 455kHz (standard)· Ceramic Discriminator or LC resonant Circuit· FSK Comparator with Open-collector Output· Quick Charge /Discharge...

product image

NJM2592 Picture
See larger image
SeekIC No. : 004434079 Detail

NJM2592: Features: · Low Operating Voltage 1.8V to 5.5V· Low Operating Current 3.5mA at V+ =2.0V· Operating Frequency up to 470MHz (reference value)· IF Input Frequency 455kHz (standard)· Ceramic Discri...

NJM2592 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2592
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Operating Voltage 1.8V to 5.5V
· Low Operating Current 3.5mA at V+ =2.0V
· Operating Frequency up to 470MHz (reference value)
· IF Input Frequency 455kHz (standard)
· Ceramic Discriminator or LC resonant Circuit
· FSK Comparator with Open-collector Output
· Quick Charge /Discharge Circuit for FSK Reference Voltage
· Bipolar Technology
· Package Outline SSOP20


Pinout

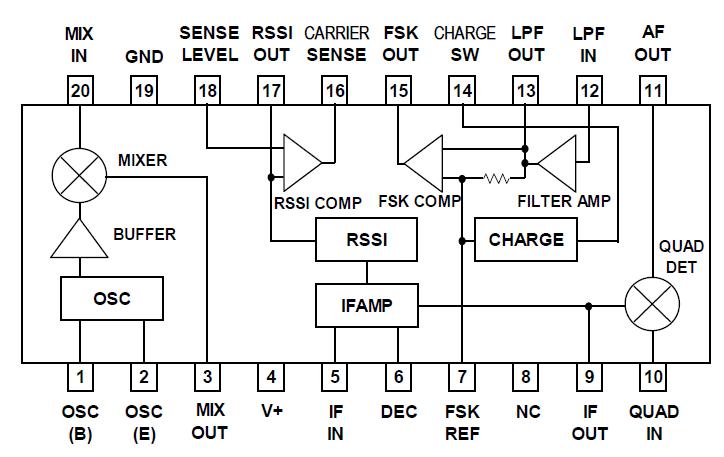

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 7.0 V
Power Dissipation PD 300 mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJM2592 is a low-voltage, low-current FM IFdemodulator IC with 455kHz(standard) IF frequency. It includes an oscillator, mixer, limiting amplifier, quadrature detector,active filter, and FSK comparator.

The NJM2592 also has a RSSI circuit and RSSI comparator for carrier sense.
