NJM2584A

Features: ` Operating Voltage 4.5 to 9.0V` Wide frequency range 0dB at 50MHz typ.` Internal 2 input-1output 3-circuit video switch` Input coupling capacitor is 1F` Operating Current 10mA typ.` Bipolar Technology` Package Outline DIP16, DMP16PinoutSpecifications PARAMETER SYMBOL RATIN...

product image

NJM2584A Picture
See larger image
SeekIC No. : 004434073 Detail

NJM2584A: Features: ` Operating Voltage 4.5 to 9.0V` Wide frequency range 0dB at 50MHz typ.` Internal 2 input-1output 3-circuit video switch` Input coupling capacitor is 1F` Operating Current 10mA typ.` ...

NJM2584A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2584A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating Voltage 4.5 to 9.0V
` Wide frequency range 0dB at 50MHz typ.
` Internal 2 input-1output 3-circuit video switch
` Input coupling capacitor is 1F
` Operating Current 10mA typ.
` Bipolar Technology
` Package Outline DIP16, DMP16


Pinout

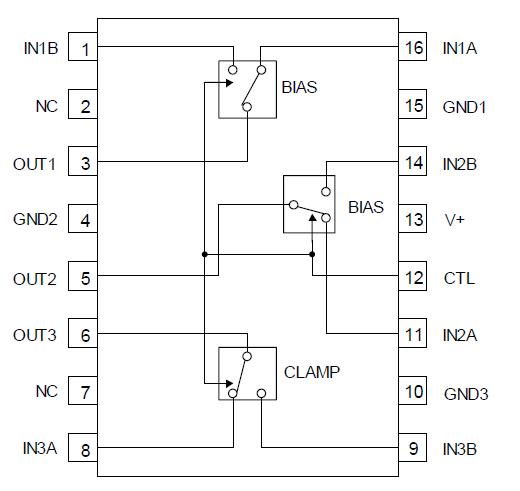

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage Vcc 10.0 V
Power Dissipation PD (DIP) 500
(DMP) 300 		mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJM2584A is a wide band 2-Input 1-Output 3-Circuit video switch. It is suitable for Y, Pb, and Pr signal because
frequency range is 50MHz.

The NJM2584A is suitable for PTV, DTV, PDP and other high quality AV systems.
