NJM2584

Features: · Operating Voltage 4.5 to 9.0V · Wide frequency range 50MHz at 0dB typ. · Internal 2 input-1output 3-circuit video switch · Operating Current 10mA typ. · Bipolar Technology · Package Outline DIP16, DMP16 PinoutSpecifications PARAMETER SYMBOL RATINGS UNIT Supply Voltage ...

product image

NJM2584 Picture
See larger image
SeekIC No. : 004434072 Detail

NJM2584: Features: · Operating Voltage 4.5 to 9.0V · Wide frequency range 50MHz at 0dB typ. · Internal 2 input-1output 3-circuit video switch · Operating Current 10mA typ. · Bipolar Technology · Packag...

NJM2584 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2584
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage  4.5 to 9.0V
· Wide frequency range  50MHz at 0dB typ.
· Internal 2 input-1output 3-circuit video switch
· Operating Current  10mA typ.
· Bipolar Technology
· Package Outline  DIP16, DMP16


Pinout

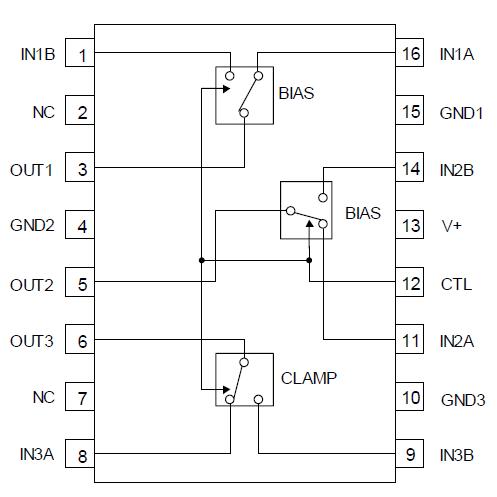

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage Vcc 10.0 V
Power Dissipation PD (DIP) 500
(DMP) 300 		mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The  NJM2584 is a  wide band 2-Input 1-Output  3-Circuit  video switch. It is suitable  for Y, Pb, and Pr signal because  frequency range is 50MHz.

The  NJM2584 is suitable for PTV, DTV, PDP  and other  high quality AV systems.
