NJM2580

Features: ` Operating Voltage 4.5 to 5.5V ` Wide frequency range 50MHz at 0dB typ. ` Internal 6dB Amplifier ` Internal 75 Driver Circuit (2-system drive) ` Power Save Circuit ` Bipolar Technology ` Package Outline DIP14, DMP14 PinoutSpecifications PARAMETER SYMBOL RATINGS UNIT Su...

product image

NJM2580 Picture
See larger image
SeekIC No. : 004434070 Detail

NJM2580: Features: ` Operating Voltage 4.5 to 5.5V ` Wide frequency range 50MHz at 0dB typ. ` Internal 6dB Amplifier ` Internal 75 Driver Circuit (2-system drive) ` Power Save Circuit ` Bipolar Technol...

NJM2580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating Voltage  4.5 to 5.5V
` Wide frequency range  50MHz at 0dB typ.
` Internal 6dB Amplifier
` Internal 75 Driver Circuit (2-system drive)
` Power Save Circuit
` Bipolar Technology
` Package Outline  DIP14, DMP14


Pinout

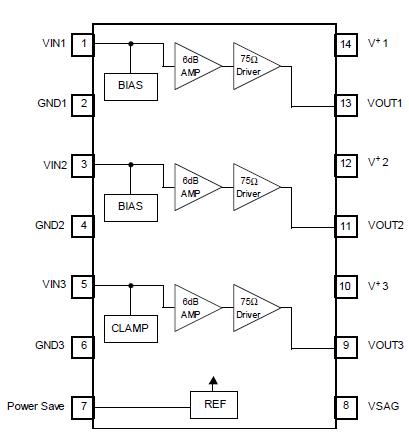

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 12.0 V
Power Dissipation PD (DIP) 500
(DMP) 350 		mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The  NJM2580  is  a wide  band 3ch video amplifier,  operated on a single supply voltage. It is suitable for Y, Pb,  and Pr signal because frequency range is 50MHz.

The NJM2580 is suitable for Set Top Box, AV amplifier,  and other high quality AV systems.
