NJM2577

Features: ` Operating Voltage ±5V` Internal 6dB Amplifier` Internal 75 Driver Circuit` Quad 5th order Butter worth Low Pass Filter` Internal High Impedance output control switch` 41dB Stop Band Rejection at 27MHz` Bipolar Technology` Package Outline DMP20PinoutSpecifications PARAMETER...

product image

NJM2577 Picture
See larger image
SeekIC No. : 004434067 Detail

NJM2577: Features: ` Operating Voltage ±5V` Internal 6dB Amplifier` Internal 75 Driver Circuit` Quad 5th order Butter worth Low Pass Filter` Internal High Impedance output control switch` 41dB Stop Ban...

NJM2577 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2577
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating Voltage ±5V
` Internal 6dB Amplifier
` Internal 75 Driver Circuit
` Quad 5th order Butter worth Low Pass Filter
` Internal High Impedance output control switch
` 41dB Stop Band Rejection at 27MHz
` Bipolar Technology
` Package Outline DMP20

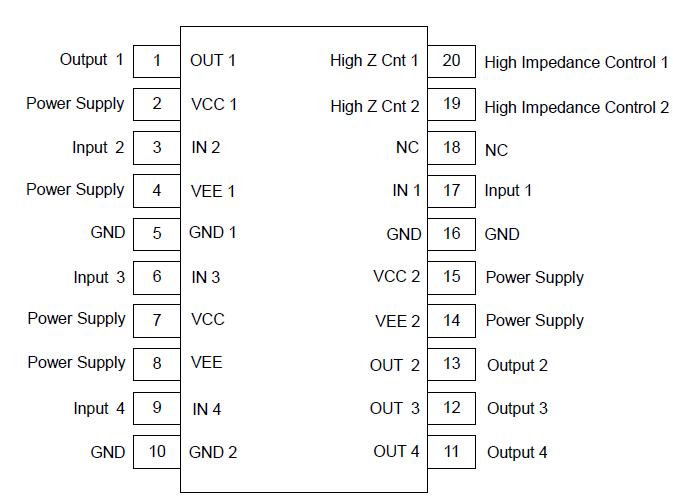

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VCC/VEE ±7.5 V
Power Dissipation PD 450 (Note) mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C

(Note) At on a board of EIA/JEDEC specification. (11.43 x 76.2 x 1.6mm Two layers, FR-4)




Description

The NJM2577 is a quad video driver. It includes LPF, 6dB amplifier and 75 Driver on all channels.

The NJM2577 enable to control the Output Impedance. It is suitable for Video system for Europe.
