NJM2573

Features: ` Operating Voltage 2.8 to 5.5V` Input type - Vin1: CLAMP - Vin2: CLAMP/ BIAS - Vin3: BIAS` Internal LPF` Internal 6dB amplifier` Internal 75 Driver Circuit (2-system drive)` Internal Power Saving Circuit` Bipolar Technology` Package Outline SSOP14PinoutSpecifications PARAM...

product image

NJM2573 Picture
See larger image
SeekIC No. : 004434062 Detail

NJM2573: Features: ` Operating Voltage 2.8 to 5.5V` Input type - Vin1: CLAMP - Vin2: CLAMP/ BIAS - Vin3: BIAS` Internal LPF` Internal 6dB amplifier` Internal 75 Driver Circuit (2-system drive)` Intern...

NJM2573 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2573
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating Voltage 2.8 to 5.5V
` Input type
  - Vin1: CLAMP
  - Vin2: CLAMP/ BIAS
  - Vin3: BIAS
` Internal LPF
` Internal 6dB amplifier
` Internal 75 Driver Circuit (2-system drive)
` Internal Power Saving Circuit
` Bipolar Technology
` Package Outline SSOP14


Pinout

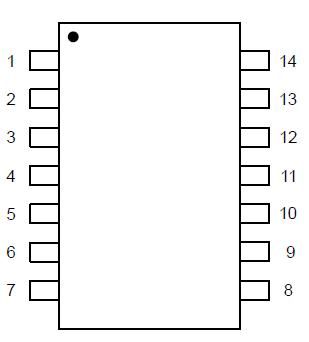

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 7.0 V
Power Dissipation PD 300 mW
Operating Temperature Range Topr -40 to +85 °C
Storage Temperature Range Tstg -40 to +125 °C



Description

The NJM2573 is a Low Voltage 3ch Video Amplifier with LPF. Internal 75 driver is easy to connect TV monitor directly.

The NJM2573 corresponds to a clamp and bias inputs, and selection of a clamp/ bias is possible for one circuit, and it corresponds to various video signals.

The NJM2573 features low power and small package, and is suitable for low power design on downsizing of DVC.
