Product Details

Description

Features:

Operating Voltage ( +4.75V~+13V )
Crosstalk ( -70dB typ. )
Input Impedance ( 58kΩ typ. )
2-Input,1-Output
Bipolar Technology
Package Outline DIP8,DMP8,SSOP8

Pinout

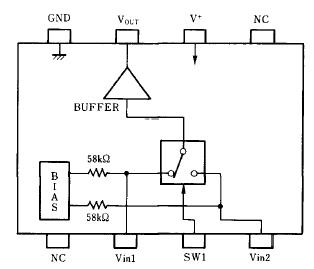

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V⁺	+15	V
Power Dissipation	P_D	( DIP8 ) 500 ( DMP8 ) 300 ( SSOP8 ) 250	mW
Operating Temperature Range	T_opr	-20 to +75	°C
Storage Temperature Range	T_stg	-40 to +125	°C

Description

The NJM2520 is 58kΩ input impedance 2-input 1-output audio switch.

NJM2520 contains two bias-type inputs and one buffer-type output.
