NJM2386

Features: · Low Dropout Voltage 0.2V typ. at Io=0.5A · Output Current Io(max.)=1.0A · ON/OFF Control (Active High) · Internal Short Circuit Current Limit · Internal Thermal Overload Protection · Bipolar Technology · Package Outline TO-252-5(NJM2386), TO-220F-4(NJM2388) PinoutSpecifications PA...

product image

NJM2386 Picture
See larger image
SeekIC No. : 004434022 Detail

NJM2386: Features: · Low Dropout Voltage 0.2V typ. at Io=0.5A · Output Current Io(max.)=1.0A · ON/OFF Control (Active High) · Internal Short Circuit Current Limit · Internal Thermal Overload Protection · Bip...

NJM2386 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2386
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Dropout Voltage  0.2V typ. at Io=0.5A
· Output Current  Io(max.)=1.0A
· ON/OFF Control  (Active High)
· Internal Short Circuit Current Limit
· Internal Thermal Overload Protection
· Bipolar Technology
· Package Outline  TO-252-5(NJM2386), TO-220F-4(NJM2388)

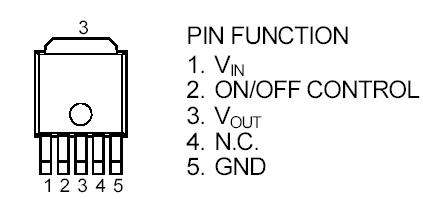

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL MAXIMUM RATINGS UNITS
Input Voltage VIN +35 V
Control Voltage VCONT +35(*1) V
Output Current Io 1.0 A
Differential Input Voltage VID 2.5 V
Power Dissipation PD NJM2386 10(Tc25°C) / 1(Ta25°C) m
NJM2388 18(Tc<50°C)
Operating Junction Temperature Range Tj -40 ∼ +150
Operating Temp. Topr -40~+85
Storage Temp. Tstg -50 ∼ +150
(*1): When input voltage is less than +35V, the absolute maximum control voltage is equal to the input voltage.


Description

The NJM2388 is low dropout voltage regulator with ON/OFF control.  The output current is up to 1.0A and dropout voltage is 0.2V typ. at  Io=0.5A.

The NJM2388 is suitable for power module, TV, Display, car stereo  and low power applications.
