Features:

Operating Voltage                                                        ( V_REF to 13V)
High Precision Reference Voltage
                                                                                          NJM2373         1.25V±2%
                                                                                          NJM2373A/76 1.25V±1%
Minimum External Parts
Bipolar Technology
Package Outline                                                            MTP5 , SOT-89

Pinout

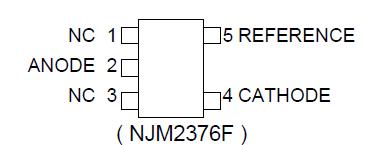

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Cathode Voltage	V_KA	+14	V
Continuous Cathode Current	I_KA	-30 to 50	mA
Reference Input Current	I_REF	-10 to 0.05	mA
Power Dissipation	P_D(MTP5) (SOT-89)	250	mW
Power Dissipation	P_D(MTP5) (SOT-89)	350	mW
Operating Temperature Range	T_opr	-40 to +85	°C
Storage Temperature Range	T_stg	-40 to +150	°C

Description

The NJM2373/73A and NJM2376 are adjustable high precision shunt regulators.

The output voltage of NJM2373/73A and NJM2376 can be adjusted to any value between reference voltage and 14V by two extend resistors.
