NJM2370

Features: · Output Current (150mA min. (Vo-0.3V))· Low Dropout Voltage (0.1V typ. (Io=30mA))· External Capaciter for Noise Bypass· ON/OFF Control Function· Over Current Limit· Thermal Shutdown· Bipolar Technology· Package Outline SOT-89 (5pin), VSP8PinoutSpecifications PARAMETER SYMBOL ...

product image

NJM2370 Picture
See larger image
SeekIC No. : 004434002 Detail

NJM2370: Features: · Output Current (150mA min. (Vo-0.3V))· Low Dropout Voltage (0.1V typ. (Io=30mA))· External Capaciter for Noise Bypass· ON/OFF Control Function· Over Current Limit· Thermal Shutdown· Bipo...

NJM2370 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2370
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Output Current           (150mA min. (Vo-0.3V))
· Low Dropout Voltage (0.1V typ.    (Io=30mA))
· External Capaciter for Noise Bypass
· ON/OFF Control Function
· Over Current Limit
· Thermal Shutdown
· Bipolar Technology
· Package Outline SOT-89            (5pin), VSP8




Pinout

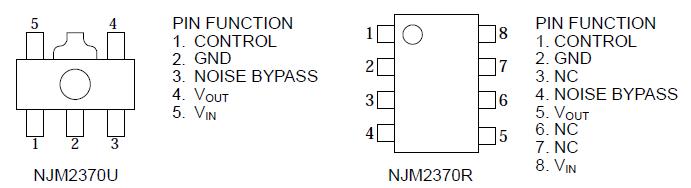

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Input Voltage
VIN
20
V
Control Voltage
VCONT
20(note 1)
V
Power Dissipation
PD
 (SOT-89) 350
(VSP8)320
mW
Operating Temperature Range
Topr
−40 ∼ +85
°C
Storage Temperature Range
Tstg
−50 ∼ +150
°C


(note 1)When input voltage is less than +20V, the absolute maximum control voltage is equal to the input voltage.




Description

The NJM2370 is a low dropout voltage regulator with ON/OFF control.

NJM2370 features dropout voltage of 0.1V at Io=30mA, low output noise and high ripple rejection by connecting an external capaciter to noise bypass terminal.

NJM2370 is suitable for portable items such as cellular phones, video camera and others.
