Features:

Quad Buffer internal TVSP10
Sink/Source Output
Offset Voltage Vio=1mV typ.
Operating Voltage 3V to 14V
Quiescent Current 1mA typ.
Bipolar Technology
Package Outline TVSP10


Pinout

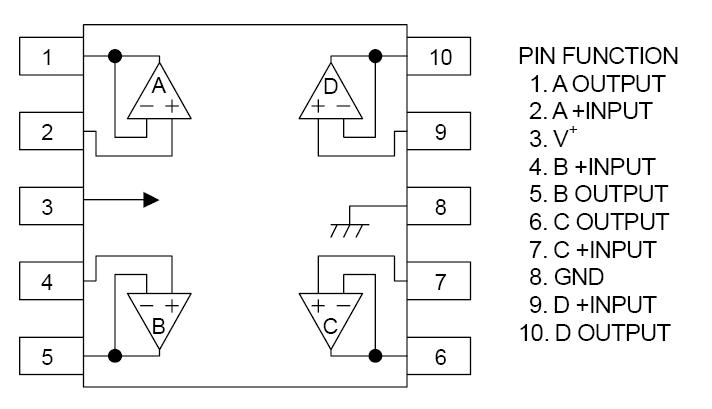

Connection Diagram


Specifications

PARAMETER SYMBOL MAXIMUM RATINGS UNIT
Supply Voltage V+ 15 V
Common Mode Input Voltage VIC -0.3 ∼ +14 (note1) V
Power Dissipation PD 320 mW
Operating Temperature Range TOPR -40 ∼ +85 °C
Storage Temperature Range TSTG -50 ∼ +125 °C
(note1) When the supply voltage is less than 14V,
the absolute maximum input voltage is equal to the supply voltage.


Description

The NJM2342 is a 4 channel buffer IC packaged in the small TVSP 10.

The NJM2342 provides buffered voltage from the external input voltage.

The sink-source output configuration effectively of NJM2342 absorbs transient response of load changes.

Therefore, NJM2342 is suitable for reference voltage generation for Video DAC, LCD bias voltage and other applications where transient response becomes an issue.
