NJM2340

Features: PWM switching control Operating Voltage (3.6 to 32V) Wide Oscillator Range (20kHz to 500 kHz) Duty Cycle (0% to 100%) Current Sensing Amplifier High Precision Reference Voltage Voltage Detect: 1V±1.5% Current Detect: 150mV±4% Bipolar Technology Package Outline DMP8, TVSP8PinoutSpecifica...

product image

NJM2340 Picture
See larger image
SeekIC No. : 004433989 Detail

NJM2340: Features: PWM switching control Operating Voltage (3.6 to 32V) Wide Oscillator Range (20kHz to 500 kHz) Duty Cycle (0% to 100%) Current Sensing Amplifier High Precision Reference Voltage Voltage Det...

NJM2340 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2340
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

PWM switching control
Operating Voltage    (3.6 to 32V)
Wide Oscillator Range    (20kHz to 500 kHz)
Duty Cycle      (0% to 100%)
Current Sensing Amplifier
High Precision Reference Voltage  Voltage Detect: 1V±1.5%
        Current Detect: 150mV±4%
Bipolar Technology
Package Outline    DMP8, TVSP8


Pinout

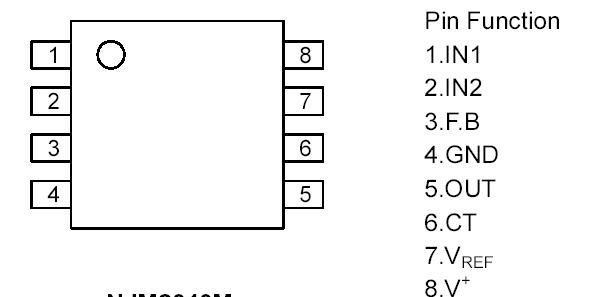

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Maximum Supply Voltage V+ 36 V
Output Sink Current ISINK 15 mA
Power Dissipation PD (DMP8) 300
(TVSP8) 320 		mW
Operating Temperature Range Topr -40 ~ +85 °C
Storage Temperature Range Tstg -50 ~ +150 °C



Description

NJM2340 is a high precision DC/DC converter control IC  with current sense amplifier.

NJM2340 uses a low side current sensing which reduces external  components and improves accuracy.

NJM2340 is applicable for a wide range of application since it  features high operating voltage and small outline packages.
