NJM2198

Features: · Operating Voltage (4.7 to 13V)· Low Supply Current (7.8mA typ. at 3D Stereo mode)· Low Output Noise (32µVrms typ. at 3D Stereo mode)· BYPASS Gain (0dB typ.)· BYPASS FUNCTION (Through)· WIDTH control· Internal Mode Control Switch (2bit)· Bipolar Technology· Package Outlin...

product image

NJM2198 Picture
See larger image
SeekIC No. : 004433938 Detail

NJM2198: Features: · Operating Voltage (4.7 to 13V)· Low Supply Current (7.8mA typ. at 3D Stereo mode)· Low Output Noise (32µVrms typ. at 3D Stereo mode)· BYPASS Gain (0dB typ.)· BYPASS FUNCTION (...

NJM2198 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2198
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage (4.7 to 13V)
· Low Supply Current (7.8mA typ. at 3D Stereo mode)
· Low Output Noise (32µVrms typ. at 3D Stereo mode)
· BYPASS Gain (0dB typ.)
· BYPASS FUNCTION (Through)
· WIDTH control
· Internal Mode Control Switch (2bit)
· Bipolar Technology
· Package Outline SDIP22, DMP24

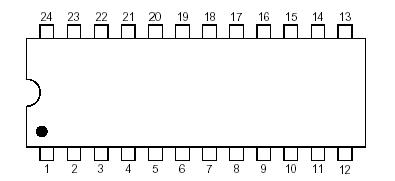

Pinout

Connection Diagram


Specifications

Supply Voltage V+ ........................................................15 V
Power Dissipation PD .......(SDIP22) 700 (SDMP24) 700 mW
Operating Temperature Range Topr ..............-40 to +85 °C
Storage Temperature Range Tstg ................-40 to +125 °C


Description

The NJM2198 is a SRS 3D surround audio processor regenerating the 3D surround sound with only two speakers.

NJM2198 regenerates 3D surround sound from both of monaural and stereo input.

The features of NJM2198 wide operating voltage range, wide dynamic range, low output noise are suitable for any audio applications.
