NJM2193

Features: · Operating Voltage 4.7 to 13V· Low Operating Current 6mA typ.· Low Output Noise 25µVrms typ. at FOCUS&3D Sound mode· Adjusted by Width,FOCUS,LF Elevation and Bass Compensation Volume· Independent Audio Input for Bypass MODE· Bipolar Technology· Package Outline SDIP30, SDMP30Pi...

product image

NJM2193 Picture
See larger image
SeekIC No. : 004433935 Detail

NJM2193: Features: · Operating Voltage 4.7 to 13V· Low Operating Current 6mA typ.· Low Output Noise 25µVrms typ. at FOCUS&3D Sound mode· Adjusted by Width,FOCUS,LF Elevation and Bass Compensation V...

NJM2193 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2193
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage 4.7 to 13V
· Low Operating Current 6mA typ.
· Low Output Noise 25µVrms typ. at FOCUS&3D Sound mode
· Adjusted by Width,FOCUS,LF Elevation and Bass Compensation Volume
· Independent Audio Input for Bypass MODE
· Bipolar Technology
· Package Outline SDIP30, SDMP30

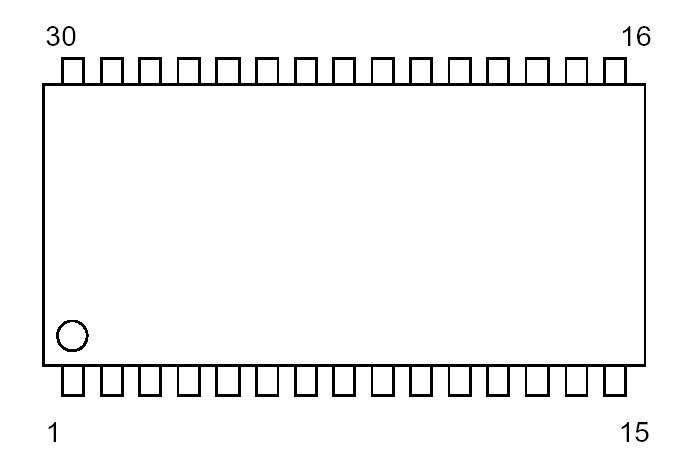

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage
V+
15
V
Power Dissipaation
PD
(SDIP30)700
(SDMP30)700
mW
Operating Temperature Range
Topr
-40 to +85
°C
Storage Temperature Range
Tstg
-50 to +150
°C



Description

The NJM2193 is a FOCUS & SRS audio processor, based on SRS FOCUS and 3D Stereo technology. It is capable of raising sound and regenerating 3D sound field.

The NJM2193 is suitable for car audio, projection TV, home stereo applications, and others.
