NJM2191

Features: · Operating Voltage 4.7 to 13V· Low Operating Current 10.0 mA typ. at 3D Stereo Mode - 11.0mA typ. at SRS HP Mode· Low Output Noise 17.8µVrms typ.at 3D Stereo Mode - 17.8µVrms typ at SRS HP Mode· Bypass Gain 0dB typ.· Sound Field Adjustment by Width Volume· Internal Mode Swit...

product image

NJM2191 Picture
See larger image
SeekIC No. : 004433932 Detail

NJM2191: Features: · Operating Voltage 4.7 to 13V· Low Operating Current 10.0 mA typ. at 3D Stereo Mode - 11.0mA typ. at SRS HP Mode· Low Output Noise 17.8µVrms typ.at 3D Stereo Mode - 17.8µVrms ...

NJM2191 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2191
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating Voltage 4.7 to 13V
· Low Operating Current 10.0 mA typ. at 3D Stereo Mode
   - 11.0mA typ. at SRS HP Mode
· Low Output Noise 17.8µVrms typ.at 3D Stereo Mode
   - 17.8µVrms typ at SRS HP Mode
· Bypass Gain 0dB typ.
· Sound Field Adjustment by Width Volume
· Internal Mode Switch 3D Stereo / SRS HP
· Bipolar Technology
· Package Outline SDIP30, SDMP30

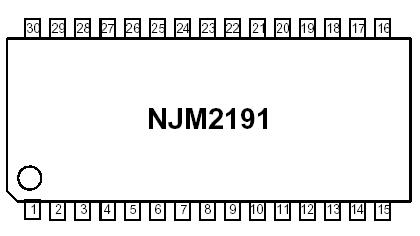

Pinout

Connection Diagram


Specifications

Operating Voltage V+ ..............................................15 V
Power Dissipation PD .........................................700 mW
Operating Temperature Range TOPR ........-40 to +85 °C
Storage Temperature Range Tstg ...........-40 to +125 °C


Description

The NJM2191 is a SRS 3D Stereo and SRS HEADPHONE audio processor. The 3D Stereo regenerates 3D surround sound with only two speakers, and also the SRS HEADPHONE provides a realistic and spacious listening experience through standard headphones.

The NJM2191 is suitable for mini component, CD radio cassette, multimedia speaker system for PC and others.
