NJM2188

Features: `Operating Voltage (4.7 to 13V)`Maximum Input Voltage (1.5Vrms typ. at V+11V)`Low Output Noise (32Vrms typ. at TRU mode)`SRS 3D-STEREO FUNCTION (Two-grade Switch for 3D Effect)`BYPASS FUNCTION (THROUGH)`Bipolar Technology`Package Outline DIP16, DMP16, SSOP16PinoutSpecifications PARA...

product image

NJM2188 Picture
See larger image
SeekIC No. : 004433931 Detail

NJM2188: Features: `Operating Voltage (4.7 to 13V)`Maximum Input Voltage (1.5Vrms typ. at V+11V)`Low Output Noise (32Vrms typ. at TRU mode)`SRS 3D-STEREO FUNCTION (Two-grade Switch for 3D Effect)`BYPASS FUNC...

NJM2188 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJM2188
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Operating Voltage (4.7 to 13V)
`Maximum Input Voltage (1.5Vrms typ. at V+11V)
`Low Output Noise (32Vrms typ. at TRU mode)
`SRS 3D-STEREO FUNCTION (Two-grade Switch for 3D Effect)
`BYPASS FUNCTION (THROUGH)
`Bipolar Technology
`Package Outline DIP16, DMP16, SSOP16


Pinout

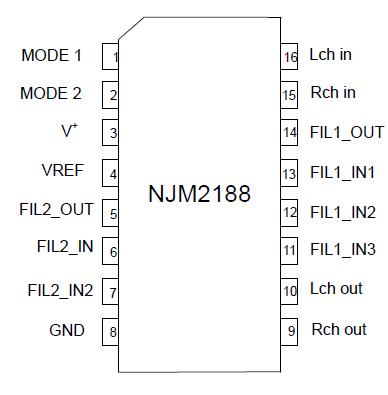

Connection Diagram




Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage V+ 15 V
Power Dissipation PD (DIP16) 500
(DMP16) 300
(SSOP16) 300		 mW
Operating Temperature Range Topr −40 to + 85 °C
Storage Temperature Range Tstg −40 to + 125 °C



Description

The NJM2188 is a Passive Matrix TruSurroundTM 3D audio processor. It regenerates the full surround sound field directly from any kinds of surround encoded stereo input(Lt/Rt) signals.

After the internal passive matrix circuit decodes Lt/Rt signal into 4 channel signals, the TruSurround virtualizer encodes NJM2188 into 2 channel surround signals again.

Accordingly any pre-processors decoding into 4 channel signals are not required.

The NJM2188 also includes the SRS 3D-STEREO, and regenerates a 3D sound field from normal L/R input.

The NJM2188 is suitable for TV, mini component, CD radio cassette, multimedia speaker system ,and others.
