SeekIC No. : 00312168 Detail

NJM2181L: Audio DSPs Passive Mtrx Tru-Snd

NJM2181L Data Sheet

Get Latest Price

Part Number:: NJM2181L
Mfg:: NJR
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NJM2035D evaluate
US $.44 - .64 / Piece

Audio DSPs 1V <3mA
NJM2035M evaluate
US $.47 - .56 / Piece

Audio DSPs 1V <3mA
NJM2035M-T1 evaluate
Audio Amplifiers Desc Unavailable

Product Details

Quick Details

Operating Temperature Range :	+ 85 C	Mounting Style :	Through Hole
Package / Case :	SDIP-24

Description

Operating Supply Voltage :
Supply Current :
Packaging :
Operating Temperature Range : + 85 C
Mounting Style : Through Hole
Package / Case : SDIP-24

Features:

` Operating Voltage (4.7 to 13V)
` Maximum input Voltage (1.5Vrms typ. at TruSurround)
` Low Output Noise (32Vrms typ. at TruSurround)
` BYPASS Gain (0dB typ.)
` Passive Matrix TruSurround
` SRS 3D Stereo & 3D Mono (Two-grade Switch for 3D Effect)
` BYPASS FUNCTION (Through)
` Bipolar Technology
` Package Outline SDIP24, DMP24

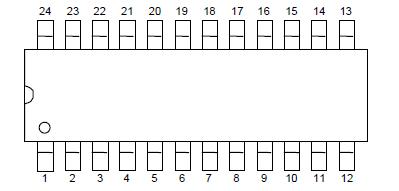

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNIT
Supply Voltage	V+	15	V
Power Dissipation	PD	(SDIP24) 700 (DMP24) 700	mW
Operating Temperature Range	Topr	−30 to + 85	°C
Storage Temperature Range	Tstg	−40 to + 125	°C

<table width="4

Description

The NJM2181 is a Passive Matrix TruSurroundTM 3D audio processor. It regenerates the full surround soundfield directly from any kinds of surround encoded stereo input (Lt/Rt) signals.

After the internal passive matrix circuit of NJM2181 decodes Lt/Rt signal into 4 channel signals, the TruSurround virtualizer reencodes them into 2 channel surround signals. Accordingly any pre-processors decoding into 4 channel signals are not required.

The NJM2181 also includes SRS 3D Stereo and 3D Mono, and regenerates a 3D sound field from either normal L/R
input or monoural input.

The NJM2181 is suitable for TV, mini component, CD radio cassette, multimedia speaker system, and others.
