Product Details

Description



Features:

·Low Voltage Operation +2.7V typ.
·Low Current Consumption     LNA 3.2mA typ.
                                               Mixer 5.1mA typ. (with Local Amplifier operation current)
·Ultra Small & Ultra Thin package FLP10-C1 (Mount Size: 2.8 x 3.0 x 0.75mm)
LNA
·High Small Signal Gain     18.0dB typ. @ fRF=1489MHz
                                         16.0dB typ. @ fRF=1900MHz
·Low Noise Figure             1.2dB typ. @ fRF=1489MHz
                                         1.3dB typ. @ fRF=1900MHz
·High Output IP3               +13.0dBm typ. @ fRF=1489.0+1489.1MHz
                                          +13.0dBm typ. @ fRF=1900.0+1900.1MHz
Mixer
·High Conversion Gain       12.5dB typ. @ fRF=1489MHz, fLO=1619MHz, PLO=-15dBm
                                          9.0dB typ. @ fRF=1900MHz, fLO=1660MHz, PLO=-15dBm
·Low Noise Figure              6.0dB typ. @ fRF=1489MHz, fLO=1619MHz, PLO=-15dBm
                                           6.5dB typ. @ fRF=1900MHz, fLO=1660MHz, PLO=-15dBm
·High Output IP3                 +10.0dBm typ. @ fRF=1489.0+1489.1MHz, fLO=1619MHz, PLO=-15dBm
                                           +11.0dBm typ. @ fRF=1900.0+1900.1MHz, fLO=1660MHz, PLO=-15dBm

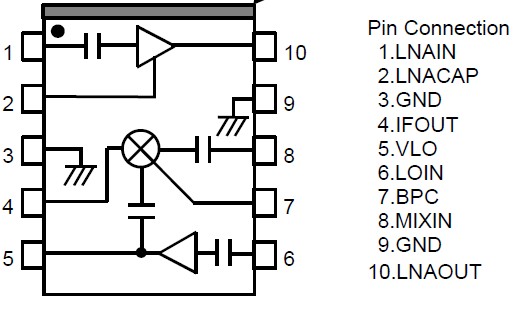

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
CONDITIONS
RATINGS
UNITS
LNA Voltage
VLNA

5.0
V
Mixer Voltage
VMIX

5.0
V
Local Amplifier Voltage
VLO

5.0
V
Input Power 1
PLNAIN
 VLNA=VMIX=VLO=2.7V
+15
dBm
Input Power 2
PLOIN
 VLNA=VMIX=VLO=2.7V
+10
dBm
Power Dissipation
PD

550
mW
Operating Temperature
Topr

-40~+85
Storage Temperature
Tstg

-55~+125



Description

NJG1709KC1 is a front-end GaAs MMIC including a LNA, a local amplifier and a mixer, designed mainly for 1.5 or 1.9GHz band cellular phone.

The ultra small & ultra thin FLP10 package is applied.
