NJG1708PC1

Features: ·Low voltage operation +3.0V typ.·Low current consumption 9mA typ.·High conversion gain 28dB typ. @fRF=820MHz, PRF=-50dBm, fLO=690MHz, PLO=-15dBm·Low noise figure 1.7dB typ. @fRF=820MHz, fLO=690MHz, PLO=-15dBm·High Input IP3 -14dBm typ. @fRF=820.0+820.1MHz, fLO=690MHz, PLO=-15dBm·Ultra S...

product image

NJG1708PC1 Picture
See larger image
SeekIC No. : 004433863 Detail

NJG1708PC1: Features: ·Low voltage operation +3.0V typ.·Low current consumption 9mA typ.·High conversion gain 28dB typ. @fRF=820MHz, PRF=-50dBm, fLO=690MHz, PLO=-15dBm·Low noise figure 1.7dB typ. @fRF=820MHz, f...

NJG1708PC1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1708PC1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low voltage operation +3.0V typ.
·Low current consumption 9mA typ.
·High conversion gain 28dB typ. @fRF=820MHz, PRF=-50dBm, fLO=690MHz, PLO=-15dBm
·Low noise figure 1.7dB typ. @fRF=820MHz, fLO=690MHz, PLO=-15dBm
·High Input IP3 -14dBm typ. @fRF=820.0+820.1MHz, fLO=690MHz, PLO=-15dBm
·Ultra Small & Thin Package FFP16-C1 (Mount Size: 2.5mmX2.5mmX0.85mm)


Pinout

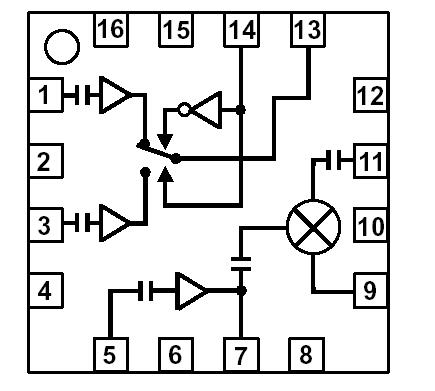

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS CONDITIONS UNITS
LNA Voltage VLNA   5.0 V
Mixer Voltage VMIX   5.0 V
Local Amplifier Voltage VLO   5.0 V
Input Power 1 PLNAIN VLNA=VMIX=VLO=2.7V +15 dBm
Input Power 2 PLOIN VLNA=VMIX=VLO=2.7V +10 dBm
Power Dissipation PD   320 mW
Operating Temp. Topr   -40~+85
Storage Temp. Tstg   -55~+150



Description

NJG1708PC1 is a downconverter GaAs MMIC including a 2xLNA, local amplifier and MIXER, designed NJG1708PC1 exhibits mainly for 800MHz band cellular phone.

The Ultra Small & Thin FFP16-C1 package is applied.
