NJG1707PG1

Features: ·Ultra small & thin package FFP32-G1 (Mount Size: 4.5x4.5x0.85mm)·Antenna Switch·Low voltage operation -2.5V (Tx only) and +3.5V·Low current consumption 10uA typ. (Tx Mode, Pin=30dBm), 2uA typ. (Rx Mode, Pin=10dBm)·Low insertion loss 0.5dB typ. @(Tx-ANT1, Tx-EXT1) fin=960MHz, Pin=30d...

product image

NJG1707PG1 Picture
See larger image
SeekIC No. : 004433862 Detail

NJG1707PG1: Features: ·Ultra small & thin package FFP32-G1 (Mount Size: 4.5x4.5x0.85mm)·Antenna Switch·Low voltage operation -2.5V (Tx only) and +3.5V·Low current consumption 10uA typ. (Tx Mode, Pin=30dBm),...

NJG1707PG1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1707PG1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Ultra small & thin package FFP32-G1 (Mount Size: 4.5x4.5x0.85mm)
·Antenna Switch
·Low voltage operation -2.5V (Tx only) and +3.5V
·Low current consumption 10uA typ. (Tx Mode, Pin=30dBm), 2uA typ. (Rx Mode, Pin=10dBm)
·Low insertion loss 0.5dB typ. @(Tx-ANT1, Tx-EXT1) fin=960MHz, Pin=30dBm
·Low Adjacent Channel -63dBc typ. @ VDD=+3.5V, VSS=-2.5V, fin=960MHz, Pin=30dBm
Leakage Power
·Low Noise Amplifier
·Low voltage operation +2.7V typ.
·Low current consumption +2.7mA typ.
·Small signal gain 17.5dB typ. @f=820MHz
·Low noise figure 1.4dB typ. @ f=820MHz
·High input IP3 IIP3=-4.5dBm typ. OIP3=+13dBm typ. @f=820MHz+820.1MHz


Pinout

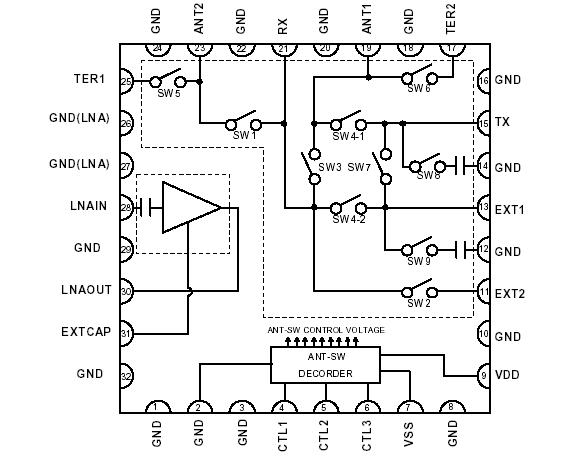

Connection Diagram


Specifications

PARAMETER
SYMBOL
CONDTIONS
RATINGS
UNITS
Supply Voltage 1
VDD1
VDD Terminal
6.0
V
Supply Voltage 2
V DD2
LNAOUT Terminal
5.0
V
Supply Voltage 3
VSS
VSS Terminal
-4.0~+0.3
V
Control Voltage
VCTL
 CTL1, CTL2, CTL3 Terminals
6.0
V
Input Power
Pin
 TX, ANT1, EXT1 Terminals
37
dBm
RX, ANT2, EXT2 Terminals
28
dBm
LNAIN Terminal
10
dBm
Power Dissipation
PD

600
mW
Operating Temperature
Topr

-40~+85
Storage Temperature
Tstg
-55~+125



Description

NJG1707PG1 is a front-end IC for a digital cellular phone of 800MHz band. A 2x6 antenna switches and a low noise amplifier are included.

The parallel control signals of three bits logic connect T/R circuits to internal two antennas or external two antennas. The termination ports of NJG1707PG1 with external matching circuits make low interference between diversity antennas.

The ultra small & thin FFP32-G1 package is adopted.
