Features:

Low voltage operation +2.7V typ.
Low current consumption 9.5mA typ.
High conversion gain 23.5dB typ. @fRF=1489MHz, PRF=-50dBm, fLO=1619MHz, PLO=-10dBm 20.5dB typ. @fRF=1900MHz, PRF=-50dBm, fLO=1660MHz, PLO=-10dBm
Low noise figure 1.6dB typ. @fRF=1489MHz, fLO=1619MHz, PLO=-10dBm, fIF=130MHz 2.2dB typ. @fRF=1900MHz, fLO=1660MHz, PLO=-10dBm, fIF=240MHz
High IIP3 -15.5dBm typ. @fRF=1489.0+1489.1MHzfLO=1619MHz, PLO=-10dBm
-10dBm typ. @fRF=1900.0+1900.1MHzfLO=1660MHz, PLO=-10dBm
Package SSOP10


Pinout

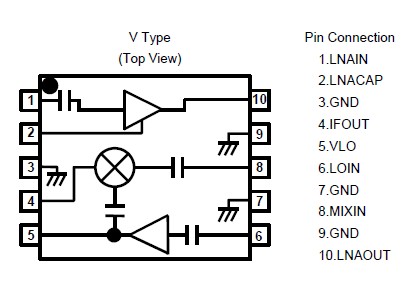

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATINGS UNITS
LNA Voltage VLNA   5.0 V
MIXER Voltage VMIX   5.0 V
Local Amplifier Voltage VLO   5.0 V
InputPower1 PLNAIN VLNA=VMIX=VLO=2.7V +15 dBm
InputPower2 PLOIN VLNA=VMIX=VLO=2.7V +10 dBm
Power Dissipation PD   320 mW
Operating Temperature Topr   -40~+85 °C
Storage Temperature Tstg   -55~+125 °C



Description

NJG1705V is a front-end GaAs MMIC including a LNA, local amplifier and a Mixer, designed mainly for 1.5 and 1.9GHz band cellular phone.

NJG1705V exhibits low noise of 16dB at 1.5GHz and 2.1dB at 1.9GHz at low total current consumption of 9.5mA.
