NJG1701V

Features: (Operating frequency f=1.9GHz)Transmitting Mode Operation·Drain Voltage (PA) 3.0V typ.·Gain 32dB typ.·Current consumption 160mA typ. @POUT=20dBm·Gain variable range 33dB typ. Receiving Mode Operation·Drain Voltage (LNA) 3.0 typ.·Gain 14dB typ.·Current consumption 2.8mA typ.·NF 2.7dB ty...

product image

NJG1701V Picture
See larger image
SeekIC No. : 004433858 Detail

NJG1701V: Features: (Operating frequency f=1.9GHz)Transmitting Mode Operation·Drain Voltage (PA) 3.0V typ.·Gain 32dB typ.·Current consumption 160mA typ. @POUT=20dBm·Gain variable range 33dB typ. Receiving M...

NJG1701V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1701V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

(Operating frequency f=1.9GHz)
Transmitting Mode Operation
·Drain Voltage (PA)           3.0V typ.
·Gain                                32dB typ.
·Current consumption      160mA typ. @POUT=20dBm
·Gain variable range         33dB typ. Receiving Mode Operation
·Drain Voltage (LNA)         3.0 typ.
·Gain                                14dB typ.
·Current consumption       2.8mA typ.
·NF                                   2.7dB typ.
·Control Voltage (SW)      2.7V typ.
·Package                          SSOP20 (Mount Size: 6.4x6.5x1.25mm)


Application

·PHS, Digital cordless phone


Pinout

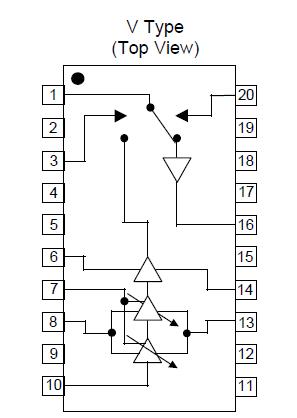

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATINGS UNITS
Drain Voltage1 VDD1   6.0 V
Drain Voltage2 VDD2,3 VGG1,2=-0.9V 6.0 V
Gate Voltage VGG1,2 VDD2,3=3.0V -4.0 V
Gain Control Voltage Vcont VDD2,3=3.0V -4.0 V
Control Voltage VSW1,2   6.0 V
Input Power1 ANT VDD1=3.0V, VSW1=0V, VSW2=2.7V 0 dBm
Input Power2 PAin VDD2,3=3.0V, VGG1,2=-0.9V 3 dBm
Power Dissipation PD At on PCB board 800 mW
Operating Temp. Topr   -30~+85 °C
Storage Temp. Tstg   -40~+150 °C



Description

NJG1701V is a GaAs multi-function MMIC composed of a power amplifier, a SPDT switch and a LNA for Japanese PHS or WLL application. The SSOP20 package is adopted and effective for downsizing of handsets.

NJG1701V is operated at low voltage with low current and low distortion PA, low loss switch and low noise and high gain
LNA.
