NJG1553F

Features: Low voltage operation+2.7VHigh conversion gain9dB typ. @fRF= 1489.0MHz, PLO= -10dBm, PRF= -30dBm7dB typ. @fRF= 1900MHz, PLO= -10dBm, PRF= -30dBmHigh Input IP3-1dBm typ. @fRF1= 1489.0MHz, fRF2= 1489.1MHz PLO= -10dBm, PRF= -30dBm4dBm typ. @fRF1= 1900.0MHz, fRF2= 1900.1MHz PLO= -10dBm, PRF=...

product image

NJG1553F Picture
See larger image
SeekIC No. : 004433852 Detail

NJG1553F: Features: Low voltage operation+2.7VHigh conversion gain9dB typ. @fRF= 1489.0MHz, PLO= -10dBm, PRF= -30dBm7dB typ. @fRF= 1900MHz, PLO= -10dBm, PRF= -30dBmHigh Input IP3-1dBm typ. @fRF1= 1489.0MHz, f...

NJG1553F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1553F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low voltage operation      +2.7V
High conversion gain         9dB typ. @fRF= 1489.0MHz, PLO= -10dBm, PRF= -30dBm
                                             7dB typ. @fRF= 1900MHz, PLO= -10dBm, PRF= -30dBm
High Input IP3                    -1dBm typ. @fRF1= 1489.0MHz, fRF2= 1489.1MHz PLO= -10dBm, PRF= -30dBm
                                              4dBm typ. @fRF1= 1900.0MHz, fRF2= 1900.1MHz PLO= -10dBm, PRF= -25dBm
Low noise figure                 6dB typ. @fRF= 1489.0MHz, PLO= -10dBm
                                              9dB typ. @fRF= 1900MHz, PLO= -10dBm
Package                               MTP6 (Mount Size: 2.8 x 2.9 x 1.2mm)


Pinout

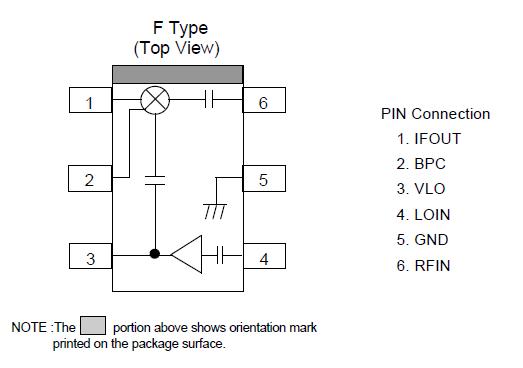

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNITS
Mixer Supply Voltage VMIX   5 V
Local Amplifier Supply Voltage
 VLO   5 V
Mixer RF Input Power PRFIN VMIX=2.7V, VLO=2.7V 10 dBm
Mixer LO Input Power PLOIN VMIX=2.7V, VLO=2.7V 10 dBm
Power Dissipation PD   150 mW
Operating Temp. Topr   -30~+85 °C
Storage Tempe. Tstg   -40~+150 °C



Description

NJG1553F is a mixer GaAs MMIC featured low distortion,high conversion gain and low noise figure.

NJG1553F includes a local amplifier, and ideally suitable for 1.5/1.9Hz band digital mobile phone and PHS handsets.

The very small MTP package is adopted.
