Features:

Low voltage operation                              +2.7V
Low current consumption                          7.0 mA
High conversion gain                                 11dB typ. @fRF=1960MHz, PRF=-30dBm
                                                                     fLO=2090MHz, PLO=-10dBm
Low noise figure                                        7dB typ. @fRF=1960MHz, fLO=2090MHz, PLO=-10dBm
                                                                     9dB typ. @fRF=1.9GHz, PLO=-10dBm
High Input IP3                                           -1dBm typ. @fRF1=1960.0MHz, fRF2=1960.1MHz, PRF=-30dBm
                                                                     fLO=2090MHz, PLO=-10dBm
Small package                                           MTP6 (Mount Size: 2.8x2.9x1.2mm)


Pinout

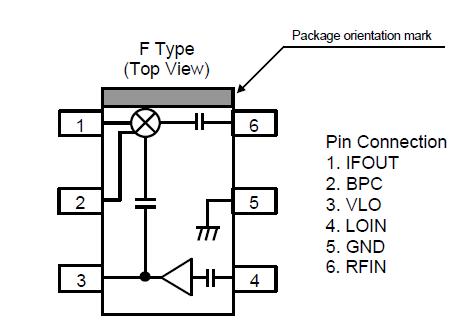

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNITS
Mixer Supply Voltage VMIX   6.5 V
Local Amplifier Supply Voltage
 VLO   6.5 V
Mixer RF Input Power PRFIN VMIX=2.7V, VLO=2.7V 10 dBm
Mixer LO Input Power PLOIN VMIX=2.7V, VLO=2.7V 10 dBm
Power Dissipation PD   150 mW
Operating Temp. Topr   -30~+85 °C
Storage Tempe. Tstg   -40~+150 °C



Description

NJG1553BF is a GaAs MMIC MIXER IC with built-in local amplifier for 1.9GHz PCS applications.

This mixer features high conversion gain, low noise figure and low distortion.
