NJG1552F

Features: Low voltage operation +2.7VLow current consumption 4.5mA typ.High conversion gain 8dB typ. @fRF=1.489GHz, PLO=-10dBm, PRF=-30dBm 5dB typ. @fRF=1.9GHz, PLO=-10dBm, PRF=-30dBmLow noise figure 6dB typ. @fRF=1.489GHz, PLO=-10dBm 9dB typ. @fRF=1.9GHz, PLO=-10dBmPackage MTP6 (Mount Size: 2.8x2...

product image

NJG1552F Picture
See larger image
SeekIC No. : 004433850 Detail

NJG1552F: Features: Low voltage operation +2.7VLow current consumption 4.5mA typ.High conversion gain 8dB typ. @fRF=1.489GHz, PLO=-10dBm, PRF=-30dBm 5dB typ. @fRF=1.9GHz, PLO=-10dBm, PRF=-30dBmLow noise figur...

NJG1552F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1552F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low voltage operation                              +2.7V
Low current consumption                          4.5mA typ.
High conversion gain                                 8dB typ. @fRF=1.489GHz, PLO=-10dBm, PRF=-30dBm
                                                                     5dB typ. @fRF=1.9GHz, PLO=-10dBm, PRF=-30dBm
Low noise figure                                        6dB typ. @fRF=1.489GHz, PLO=-10dBm
                                                                     9dB typ. @fRF=1.9GHz, PLO=-10dBm
Package                                                     MTP6 (Mount Size: 2.8x2.9x1.2mm)


Pinout

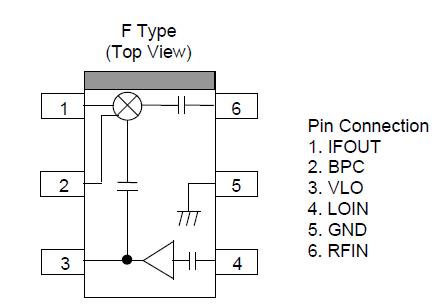

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNITS
Mixer Supply Voltage VMIX   5 V
Local Amplifier Supply Voltage
 VLO   5 V
Mixer RF Input Power PRFIN VMIX=2.7V, VLO=2.7V 10 dBm
Mixer LO Input Power PLOIN VMIX=2.7V, VLO=2.7V 10 dBm
Power Dissipation PD   150 mW
Operating Temp. Topr   -30~+85 °C
Storage Tempe. Tstg   -40~+150 °C



Description

NJG1552F is a mixer GaAs MMIC featured low power consumption, high conversion gain and low noise figure.

NJG1552F includes a local amplifier, and ideally suitable for 1.5/1.9Hz band digital mobile phone and PHS handsets.

The very small MTP package is adopted.
