NJG1551F

Features: Low voltage operation +2.7VHigh conversion gain 13dB typ. @fRF=820MHz, PLO=-10dBm, PRF=-30dBmHigh IP3 OIP3=12dBm typ. @fRF1=820.0MHz, fRF2=820.1MHz PLO=-10dBm, PRF=-30dBm IIP3=-1dBm typ. @fRF1=820.0MHz, fRF2=820.1MHz PLO=-10dBm, PRF=-30dBmLow noise figure 5dB typ. @fRF=820MHz, PLO=-10dBm...

product image

NJG1551F Picture
See larger image
SeekIC No. : 004433849 Detail

NJG1551F: Features: Low voltage operation +2.7VHigh conversion gain 13dB typ. @fRF=820MHz, PLO=-10dBm, PRF=-30dBmHigh IP3 OIP3=12dBm typ. @fRF1=820.0MHz, fRF2=820.1MHz PLO=-10dBm, PRF=-30dBm IIP3=-1dBm typ. @...

NJG1551F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NJG1551F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low voltage operation                +2.7V
High conversion gain                   13dB typ. @fRF=820MHz, PLO=-10dBm, PRF=-30dBm
High IP3                                       OIP3=12dBm typ. @fRF1=820.0MHz, fRF2=820.1MHz
                                                        PLO=-10dBm, PRF=-30dBm
                                                        IIP3=-1dBm typ. @fRF1=820.0MHz, fRF2=820.1MHz
                                                        PLO=-10dBm, PRF=-30dBm
Low noise figure                           5dB typ. @fRF=820MHz, PLO=-10dBm
Package                                        MTP6 (Mount Size: 2.8x2.9x1.2mm)


Pinout

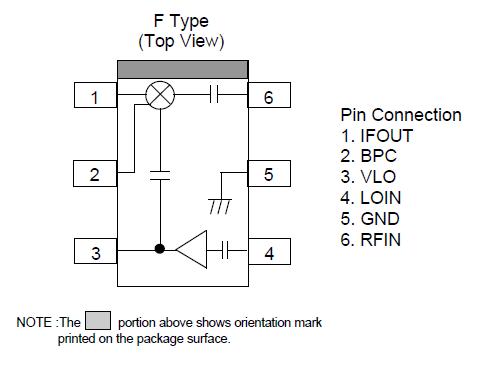

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNITS
Mixer Supply Voltage VMIX   5 V
Local Amplifier Supply Voltage
 VLO   5 V
Mixer RF Input Power PRFIN VMIX=2.7V, VLO=2.7V 10 dBm
Mixer LO Input Power PLOIN VMIX=2.7V, VLO=2.7V 10 dBm
Power Dissipation PD   150 mW
Operating Temp. Topr   -30~+85 °C
Storage Tempe. Tstg   -40~+150 °C



Description

NJG1551F is a mixer GaAs MMIC featured low distortion, high conversion gain and low noise figure.

NJG1551F includes a mixer and a local amplifier,and ideally suitable for 800MHz band digital mobile phone handsets.

The very small MTP package is adopted.
