Features:

Low voltage operation              +2.7V
Low current consumption          4.5mA typ.
High conversion gain                14dB typ. @fRF=820MHz, PLO=-10dBm, PRF=-30dBm
Low noise figure                       5dB typ. @fRF=820MHz, PLO=-10dBm
Package                                    MTP6 (Mount Size: 2.8x2.9x1.2mm)


Pinout

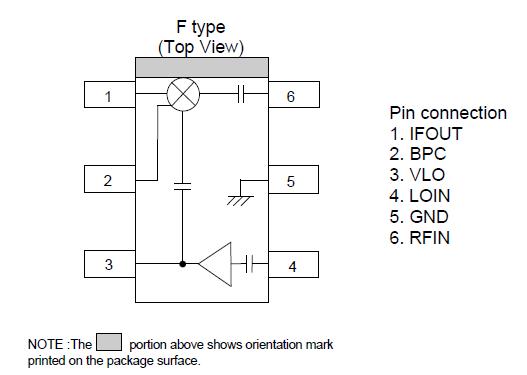

Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RATINGS UNITS
Mixer Supply Voltage VMIX   5 V
Local Amplifier Supply Voltage
 VLO   5 V
Mixer RF Input Power PRFIN VMIX=2.7V, VLO=2.7V 10 dBm
Mixer LO Input Power PLOIN VMIX=2.7V, VLO=2.7V 10 dBm
Power Dissipation PD   150 mW
Operating Temp. Topr   -30~+85 °C
Storage Tempe. Tstg   -40~+150 °C



Description

NJG1550F is a mixer GaAs MMIC featured low power consumption, high conversion gain and low noise figure.

NJG1550F includes a mixer and a local amplifier, and ideally suitable for 800MHz band digital mobile phone handsets.

A small MTP package is adopted.
